ARJM11A1-809-AD-CW4 RJ45 1X1 Through Hole 2.5G Base-T Shielded Connector

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: ARJM11A1-809-AD-CW4

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.5-$3.5

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price
Highlight:

stacked rj45 connectors

,

shielded rj45 plugs

Part Number:
ARJM11A1-809-AD-CW4
Equivalent:
SM-LPJxxxxxNL
Ethernet:
2.5G Ethernet
Samples:
Available
LED Color:
Green - Orange
Shielding:
Shielded, EMI Finger
Part Number:
ARJM11A1-809-AD-CW4
Equivalent:
SM-LPJxxxxxNL
Ethernet:
2.5G Ethernet
Samples:
Available
LED Color:
Green - Orange
Shielding:
Shielded, EMI Finger

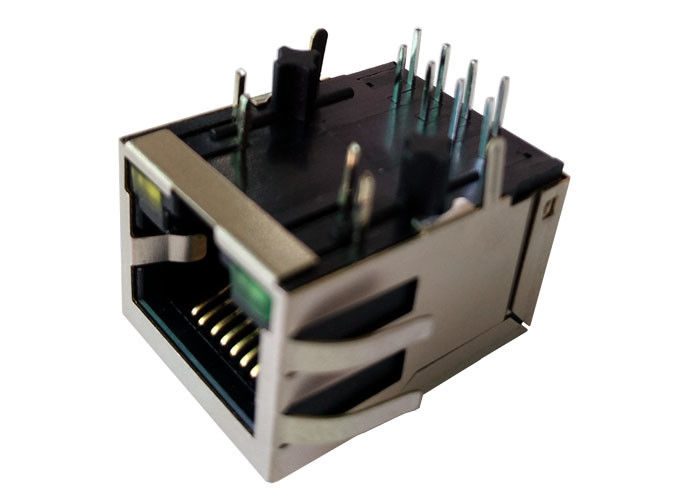

ARJM11A1-809-AD-CW4 RJ45 1X1 Through Hole 2.5G Base-T Shielded Connector
ARJM11A1-809-AD-CW4 RJ45 1X1 Through Hole 2.5G Base-T Shielded Connector
  • P/N: ARJM11A1-809-AD-CW4
  • RJ45 1X1 Tab Down
  • Through Hole
  • 2.5G Base-T
  • LED:L-Green; R-Orange
  • Rj45 Connector with led
  • Right Angle Ethernet Connectors
Part Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 2.5G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.535" (13.59mm)
LED Color Green - Orange
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Features Board Lock
Tab Direction Down
Contact Material -
Contact Finish Gold
Operating Temperature 0°C ~ 70°C
Contact Finish Thickness 30.0µin (0.76µm)



Applications For Terminal User
Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...



Competitive Advantage
18 years production experience,
2600 staff,
100% test
Flexible delivery time



Main Customer
Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......

J3011G21DNLT SMT 1x1 Port RJ45 Magjack Connector With 10/100M

J3011G21DNLT SMT 1x1 Port RJ45 Magjack Connector With 10/100M

EMS ApplicationBuilt-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly



Other Part Number

ARJM11B1-805-NN-ER2-T ARJM11A1-805-NN-ER2-T ARJM11D7-809-NN-EW4
ARJM11C7-809-NN-EW4 ARJM11D7-805-NN-EW4 ARJM11C7-805-NN-EW4
ARJM11B3-809-AN-CW4 ARJM11A3-809-AN-CW4 ARJM11B3-805-AN-CW4
ARJM11A3-805-AN-CW4 ARJM11B1-809-AN-CW4 ARJM11A1-809-AN-CW4
ARJM11B1-805-AN-CW4 ARJM11A1-805-AN-CW4 ARJM11B1-805-KB-CW2
ARJM11B1-809-JJ-CW2 ARJM11B1-805-KK-CW2 ARJM11A1-805-KK-CW2
ARJM11A1-809-KK-CW2 ARJM11B1-809-KK-CW2
