Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO

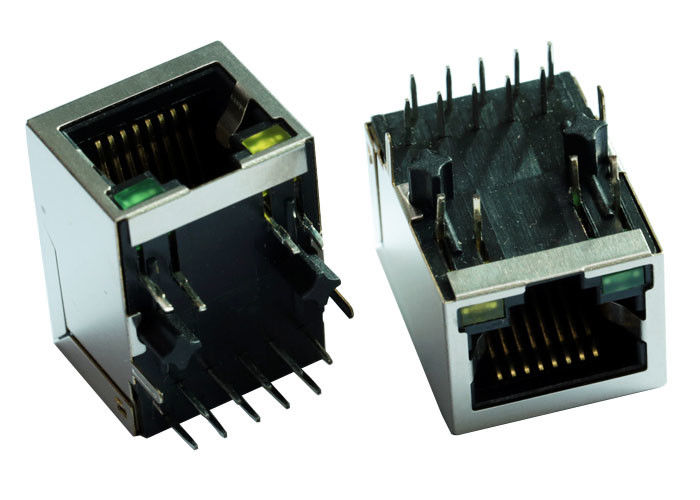

Model Number: ARJM11B3-809-AB-CW4
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4800K-PCS/Month
Specification: |
ARJM11B3-809-AB-CW4 |
Cross Part No: |
LPJxxxxxxNL |
Base: |
1x2.5GMbps |
Indicator: |
LED ( Green / Yellow ) |
Mounting: |
R/A Shield |
Samples: |
Available Free |
Specification: |
ARJM11B3-809-AB-CW4 |
Cross Part No: |
LPJxxxxxxNL |
Base: |
1x2.5GMbps |
Indicator: |
LED ( Green / Yellow ) |
Mounting: |
R/A Shield |
Samples: |
Available Free |
| Part Status | Active | |
|---|---|---|
| Connector Type | RJ45 | |
| Number of Ports | 1 | |
| Number of Rows | 1 | |
| Applications | 2.5G Base-T, AutoMDIX | |
| Mounting Type | Through Hole | |
| Orientation | 90° Angle (Right) | |
| Termination | Solder | |
| Height Above Board | 0.535" (13.59mm) | |
| LED Color | Green - Yellow | |
| Number of Cores per Jack | 8 | |
| Shielding | Shielded | |
| Features | Board Lock | |
| Tab Direction | Down | |
| Contact Material | - | |
| Contact Finish | Gold | |
| Operating Temperature | 0°C ~ 70°C | |
| Contact Finish Thickness | 30.0µin (0.76µm) |
NOTES:
1.Designed to support application,such as SOHO(ADSLmodems),LAN-on- Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
Housing: Thermoplastic PBT+30%G.F UL94V-0
Contact: Phosphor Bonze C5210R-EH Thickness=0.35mm
Pins: Brass C2680R-H Thickness=0.35mm
Shield: SUS 201-1/2H Thickness=0.2mm
Contact plating: Gold 6 micro-inches min.In contact area.
4.Wave solder tip temperature: 265℃ Max, 5 Sec Max
5.UL Certification: File Number E484635
Other Part Number
| ARJM11B1-805-NN-ER2-T | ARJM11A1-805-NN-ER2-T | ARJM11D7-809-NN-EW4 |
| ARJM11C7-809-NN-EW4 | ARJM11D7-805-NN-EW4 | ARJM11C7-805-NN-EW4 |
| ARJM11B3-809-AN-CW4 | ARJM11A3-809-AN-CW4 | ARJM11B3-805-AN-CW4 |
| ARJM11A3-805-AN-CW4 | ARJM11B1-809-AN-CW4 | ARJM11A1-809-AN-CW4 |
| ARJM11B1-805-AN-CW4 | ARJM11A1-805-AN-CW4 | ARJM11B1-805-KB-CW2 |
| ARJM11B1-809-JJ-CW2 | ARJM11B1-805-KK-CW2 | ARJM11A1-805-KK-CW2 |
| ARJM11A1-809-KK-CW2 | ARJM11B1-809-KK-CW2 | ARJM11A3-809-AD-CW4 |
