Home > products > Magnetic RJ45 Jack > ARJM11D7-805-KK-EW2 Magnetic 1x1 R-j45 Jack 2.5G 8P8C Shield Right Angle

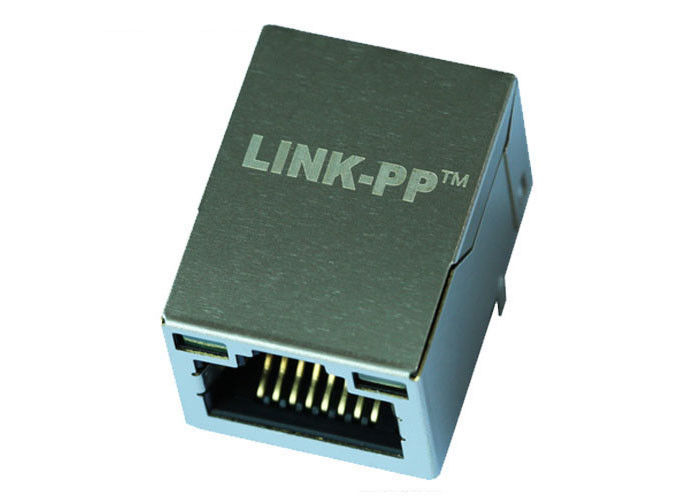

ARJM11D7-805-KK-EW2 Magnetic 1x1 R-j45 Jack 2.5G 8P8C Shield Right Angle

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: ARJM11D7-805-KK-EW2

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.5-$3.5

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price
Highlight:

stacked rj45 connectors

,

shielded rj45 plugs

Part No:
ARJM11D7-805-KK-EW2
Munafactuer:
LINK-PP
Ethernet:
1x2.5GMbps
Indicator:
Green, Orange - Green, Orange
Mounting:
R/A
Cross Rf:
LPJXXXXXNL
Part No:
ARJM11D7-805-KK-EW2
Munafactuer:
LINK-PP
Ethernet:
1x2.5GMbps
Indicator:
Green, Orange - Green, Orange
Mounting:
R/A
Cross Rf:
LPJXXXXXNL
ARJM11D7-805-KK-EW2 Magnetic 1x1 R-j45 Jack 2.5G 8P8C Shield Right Angle
ARJM11D7-805-KK-EW2 Magnetic 1x1 R-j45 2.5G Jack 8P8C Shield Right Angle
  • 1x 2.5G Mbps RJ45 Switching Ports
  • Rj45 Connector with 2.5G Base-t Integrated Magnetics
  • IEEE 802.3 2.5G BASE-T
  • Rj45 Right Angle PCB Connector
  • ARJM11D7-805-KK-EW2 : -40℃~85℃
  • RJ-45 connector integrated with Filter
Part Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 2.5G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.543" (13.80mm)
LED Color Green, Orange - Green, Orange
Number of Cores per Jack 8
Shielding Shielded
Features Board Lock
Tab Direction Up
Contact Material -
Contact Finish Gold
Operating Temperature -40°C ~ 85°C
Contact Finish Thickness 6.00µin (0.152µm)



NOTES:

1.Designed to support application,such as SOHO(ADSLmodems),LAN-on- Motherboard(LOM),hub and     Switches.

2.Meets IEEE 802.3 specification

3.Connector Materials:

Housing: Thermoplastic PBT+30%G.F UL94V-0

Contact: Phosphor Bonze C5210R-EH Thickness=0.35mm

Pins: Brass C2680R-H Thickness=0.35mm

Shield: SUS 201-1/2H Thickness=0.2mm

Contact plating: Gold 6 micro-inches min.In contact area.

4.Wave solder tip temperature: 265℃ Max, 5 Sec Max

5.UL Certification: File Number E484635



Company profile :



LINK-PP Established in 1997,is worldwide leader in magnetic telecom,networking components and optical transceiver modules design and manufacturing. With an extensive line of state-of-the-art catalog products as well as custom capabilities, LINK-PP is a global supplier magnetic telecom,networking components and Optical Transceiver Modules,the OEM and ODM are welcome.



LINK-PP,there are 2600 staff at present. With the abundant productive capacity of 6000k per month, we are able to deliver the goods within the short time. Moreover,we can provide the professional complete solution for magnetic components and strong technical support as well. Our products are widely used in networking and communication equipments such as HUB,PC card, Switch, Router ,PC Main board, SDH,PDH,IP Phone, xDSL modem.

Committed to bringing the highest possible level of compliance to international standards, all sites are ROSH6, ISO9000:2008 ISO14001:2004, UL,REACH ,CE, FCC,TUV,FDA Registered.



Other Part Number

ARJM11B1-805-NN-ER2-T ARJM11A1-805-NN-ER2-T ARJM11D7-809-NN-EW4
ARJM11C7-809-NN-EW4 ARJM11D7-805-NN-EW4 ARJM11C7-805-NN-EW4
ARJM11B3-809-AN-CW4 ARJM11A3-809-AN-CW4 ARJM11B3-805-AN-CW4
ARJM11A3-805-AN-CW4 ARJM11B1-809-AN-CW4 ARJM11A1-809-AN-CW4
ARJM11B1-805-AN-CW4 ARJM11A1-805-AN-CW4 ARJM11B1-805-KB-CW2
ARJM11B1-809-JJ-CW2 ARJM11B1-805-KK-CW2 ARJM11A1-805-KK-CW2
ARJM11A1-809-KK-CW2 ARJM11B1-809-KK-CW2
