Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: ARJM11A1-809-KB-CW2
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.5-$3.5
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Specifications: |
ARJM11A1-809-KB-CW2 |
P/N: |
LPJxxxxxNL |
Speed: |
2.5G Base-TX |
Samples: |
Available 2 Pcs |
Project Application: |
Industrial Switches |
Cores: |
8 |
Specifications: |
ARJM11A1-809-KB-CW2 |
P/N: |
LPJxxxxxNL |
Speed: |
2.5G Base-TX |
Samples: |
Available 2 Pcs |
Project Application: |
Industrial Switches |
Cores: |
8 |

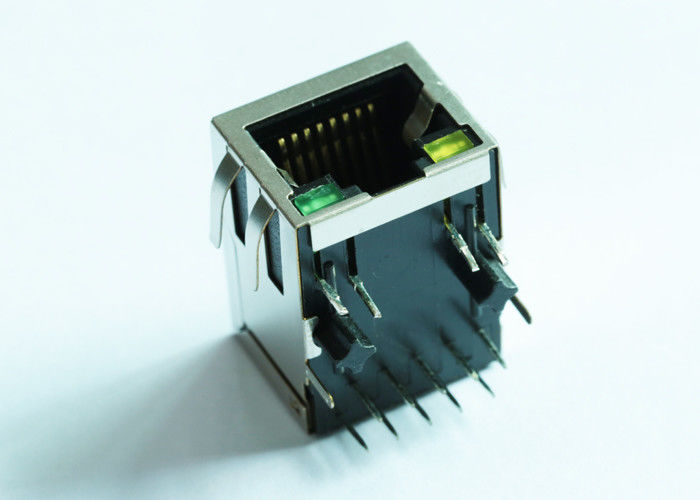

| Part Status | Active | |
|---|---|---|
| Connector Type | RJ45 | |
| Number of Ports | 1 | |
| Number of Rows | 1 | |
| Applications | 2.5G Base-T, AutoMDIX | |
| Mounting Type | Through Hole | |
| Orientation | 90° Angle (Right) | |
| Termination | Solder | |
| Height Above Board | 0.535" (13.59mm) | |
| LED Color | Green, Orange - Yellow | |
| Number of Cores per Jack | 8 | |
| Shielding | Shielded, EMI Finger | |
| Features | Board Lock | |
| Tab Direction | Down | |
| Contact Material | - | |
| Contact Finish | Gold | |
| Operating Temperature | 0°C ~ 70°C | |
| Contact Finish Thickness | 6.00µin (0.152µm) |
Applications:
Used for networking and communication equipments such as HUB, PC card,Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
LINK-PP there are 2600 staff at present. With the abundant productive capacity of 6000k per month, we are able to deliver the goods within the short time. Moreover,we can provide the professional complete solution for magnetic components and strong technical support as well. Our products are widely used in networking and communication equipments such as HUB,PC card, Switch, Router ,PC Main board, SDH,PDH,IP Phone, xDSL modem.
Committed to bringing the highest possible level of compliance to international standards, all sites are ROSH6, ISO9000:2008 ISO14001:2004, UL,REACH ,CE, FCC,TUV,FDA Registered.
Other Part Number
| ARJM11B1-805-NN-ER2-T | ARJM11A1-805-NN-ER2-T | ARJM11D7-809-NN-EW4 |
| ARJM11C7-809-NN-EW4 | ARJM11D7-805-NN-EW4 | ARJM11C7-805-NN-EW4 |
| ARJM11B3-809-AN-CW4 | ARJM11A3-809-AN-CW4 | ARJM11B3-805-AN-CW4 |
| ARJM11A3-805-AN-CW4 | ARJM11B1-809-AN-CW4 | ARJM11A1-809-AN-CW4 |
| ARJM11B1-805-AN-CW4 | ARJM11A1-805-AN-CW4 | ARJM11B1-805-KB-CW2 |
| ARJM11B1-809-JJ-CW2 | ARJM11B1-805-KK-CW2 | ARJM11A1-805-KK-CW2 |
| ARJM11A1-809-KK-CW2 | ARJM11B1-809-KK-CW2 |
