ARJM11A1-809-AN-EW2 2.5G Base-TX RJ45 Tab-Down 8 pin Magnetics Jack

China ARJM11A1-809-AN-EW2 2.5G Base-TX RJ45 Tab-Down 8 pin Magnetics Jack supplier
ARJM11A1-809-AN-EW2 2.5G Base-TX RJ45 Tab-Down 8 pin Magnetics Jack supplier ARJM11A1-809-AN-EW2 2.5G Base-TX RJ45 Tab-Down 8 pin Magnetics Jack supplier

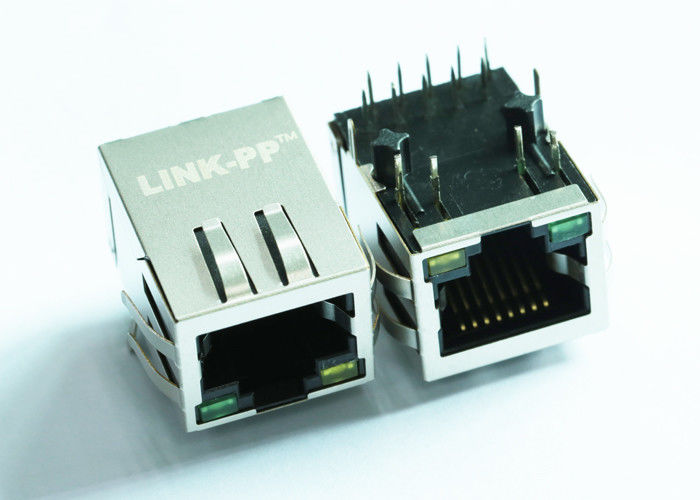

Large Image :  ARJM11A1-809-AN-EW2 2.5G Base-TX RJ45 Tab-Down 8 pin Magnetics Jack

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: SGS,ISO,UL,Reach,RoHS
Model Number: ARJM11A1-809-AN-EW2

Payment & Shipping Terms:

Minimum Order Quantity: 500/1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 250000-320000/Month
Contact Now
Detailed Product Description
Specification: ARJM11A1-809-AN-EW2 Part No: LPJXXXXXNL
Ethernet: 1x2.5G Mbps Indicator: Green / Green
Mounting: R/A Shield Samples: Available Free

ARJM11A1-809-AN-EW2 2.5G Base-TX RJ45 Tab-Down 8 pin Magnetics Jack
  • 1X1 Tab-Down RJ45 ARJM11A1-809-AN-EW2
  • 2.5G Base-TX RJ45 1X1 Tab-Down 8 pin Integrated Magnetics Connector
  • Cross Equivalent ARJM11A1-809-AN-EW2 Pin to Pin
  • Designed for industrial rated applications suitable for reflow solder mounting.
  • Meets IEEE802.3 specification
  • 350μH minimum OCL with 8mA DC bias current
  • Extended Temperature range from 0℃~70℃
Part Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 2.5G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.535" (13.59mm)
LED Color Green
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Features Board Lock
Tab Direction Down
Contact Material -
Contact Finish Gold
Operating Temperature -40°C ~ 85°C
Contact Finish Thickness 6.00µin (0.152µm)
