ARJM11A3-805-AN-EW2 2.5G Base-TX RJ45 Tab-Down 8 pin Magnetics Jack

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: ARJM11A3-805-AN-EW2

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.5-$3.5

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price
Highlight:

rj45 magnetic jack

,

shielded rj45 plugs

Specification:
ARJM11A3-805-AN-EW2
Part No:
LPJXXXXXNL
Ethernet:
1x2.5G Mbps
Indicator:
Green / Green
Mounting:
R/A Shield
Samples:
Available Free
Specification:
ARJM11A3-805-AN-EW2
Part No:
LPJXXXXXNL
Ethernet:
1x2.5G Mbps
Indicator:
Green / Green
Mounting:
R/A Shield
Samples:
Available Free

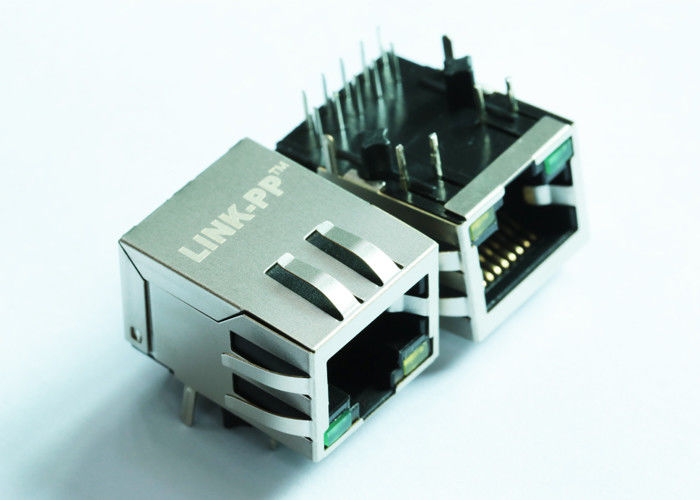

ARJM11A3-805-AN-EW2 2.5G Base-TX RJ45 Tab-Down 8 pin Magnetics Jack
ARJM11A3-805-AN-EW2 2.5G Base-TX RJ45 Tab-Down 8 pin Magnetics Jack
  • 1X1 Tab-Down RJ45 ARJM11A3-805-AN-EW2
  • 2.5G Base-TX RJ45 1X1 Tab-Down 8 pin Integrated Magnetics Connector
  • Cross Equivalent ARJM11A3-805-AN-EW2 Pin to Pin
  • Designed for industrial rated applications suitable for reflow solder mounting.
  • Meets IEEE802.3 specification
  • 350μH minimum OCL with 8mA DC bias current
Part Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 2.5G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.535" (13.59mm)
LED Color Green
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Features Board Lock
Tab Direction Down
Contact Material -
Contact Finish Gold
Operating Temperature -40°C ~ 85°C
Contact Finish Thickness 6.00µin (0.152µm)
