ARJM11A1-809-AD-EW2 Shielded RJ45 Single Port 1 x 2.5G Mbit Ethernet Jack

China ARJM11A1-809-AD-EW2 Shielded RJ45 Single Port 1 x 2.5G Mbit Ethernet Jack supplier
ARJM11A1-809-AD-EW2 Shielded RJ45 Single Port 1 x 2.5G Mbit Ethernet Jack supplier ARJM11A1-809-AD-EW2 Shielded RJ45 Single Port 1 x 2.5G Mbit Ethernet Jack supplier

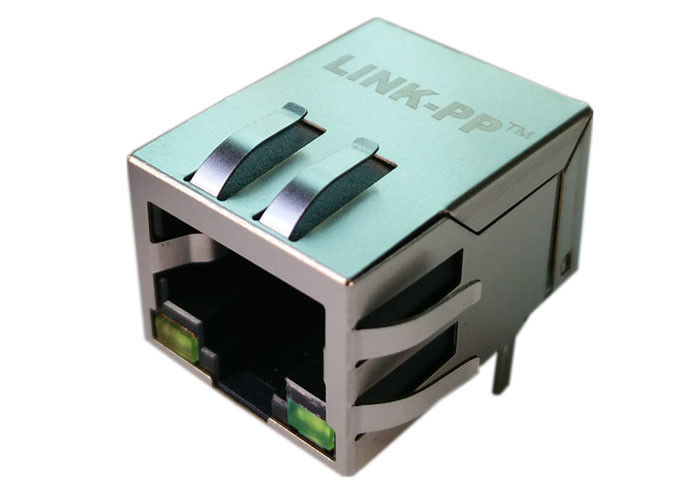

Large Image :  ARJM11A1-809-AD-EW2 Shielded RJ45 Single Port 1 x 2.5G Mbit Ethernet Jack

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: SGS,ISO,UL,Reach,RoHS
Model Number: ARJM11A1-809-AD-EW2

Payment & Shipping Terms:

Minimum Order Quantity: 500/1200
Price: Supportive&Discount
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 250000-320000/Month
Contact Now
Detailed Product Description
Specification: ARJM11A1-809-AD-EW2 Part No: LPJxxxxxxNL
Ethernet: 1x2.5GMbps Indicator: Green - Orange
Mounting: Side Entry, Shield Samples: Available Free

ARJM11A1-809-AD-EW2 Shielded RJ45 Single Port 1 x 2.5G Mbit Ethernet Jack
  • 1x Fast Ethernet (10/100Base) :LPJxxxxxNL PHY Interface With Rj45 Magnetics
  • Equivalent Pin to Pin with ARJM11A1-809-AD-EW2
  • Green - Orange LED Indicator 1x 2.5G Mbps Ethernet
  • -40°C ~ 85°C : LPJxxxxxxNL
  • 350uH min OCL at 8mA DC Bias
  • 6μ” Gold Plating (min) on Contacts
  • Full Temp Range ,100% Electrical Testing
  • 1500Vrms Hi-Pot
Part Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 2.5G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.535" (13.59mm)
LED Color Green - Orange
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Features Board Lock
Tab Direction Down
Contact Material -
Contact Finish Gold
Operating Temperature -40°C ~ 85°C
Contact Finish Thickness 6.00µin (0.152µm)
