ARJM11A3-809-AD-EW2 Single Port RJ45 Connector With 2.5G Base-T Magnetic

China ARJM11A3-809-AD-EW2 Single Port RJ45 Connector With 2.5G Base-T Magnetic supplier
ARJM11A3-809-AD-EW2 Single Port RJ45 Connector With 2.5G Base-T Magnetic supplier ARJM11A3-809-AD-EW2 Single Port RJ45 Connector With 2.5G Base-T Magnetic supplier

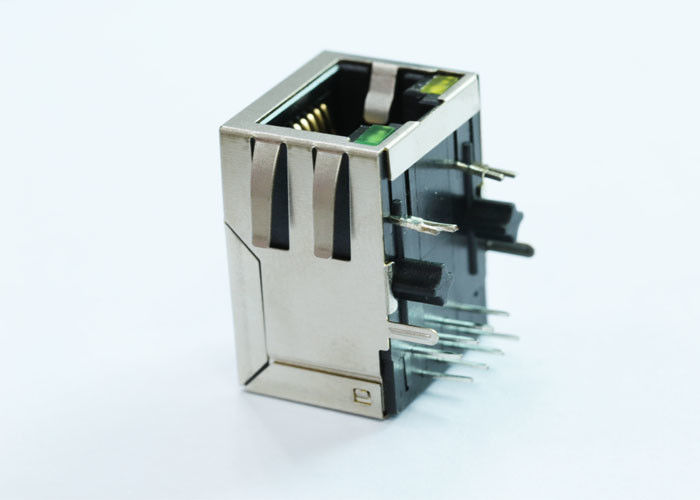

Large Image :  ARJM11A3-809-AD-EW2 Single Port RJ45 Connector With 2.5G Base-T Magnetic

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: ARJM11A3-809-AD-EW2

Payment & Shipping Terms:

Minimum Order Quantity: 200 PCS
Price: $1.85↑
Packaging Details: 60 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Part Number: ARJM11A3-809-AD-EW2 Original Munafactuer: LINK-PP
Application: 2.5G Base-T Termination: Solder
LEDs: Optional Mount Style: DIP / Side Entry

ARJM11A3-809-AD-EW2 Single Port RJ45 Connector With 2.5G Base-T Magnetic

Quick Details

1.RJ-45 needs to be matched FCC standard.
2.Complies with requirement of IEEE802.3af standards.
3.RJ-45 connector integrated with transformer/impedance resistor/high voltage capacitor.
4.Size same as RJ-45 connector to save PCB board space.
5.Reduced EMI radiation to improve EMI performance.
6.Design for 5G BASE transmission over UTP-5 cable.
7.Compliance with ROHS requirements.
8.Operating temperature range: -40℃ to +85℃
9.Storage temperature range: -25℃ to +85℃.

10.Designing Model: 【ARJM11A3-809-AD-EW2】

11.Mass Production Model:【LPJkXXXXNL】


MAG.REVERSE LATCH ,

LED optional ; EMI-finger Optional.


Description

Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 2.5G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.535" (13.59mm)
LED Color Green - Orange
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Features Board Lock
Tab Direction Down
Contact Material -
Contact Finish Gold
Operating Temperature -40°C ~ 85°C
Contact Finish Thickness 6.00µin (0.152µm)



Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...



Competitive Advantage

18 years production experience,

2600 staff,

100% test

Flexible delivery time



Main Customer

Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......



EMS Application

Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly



Main Customer
Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......
