Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO

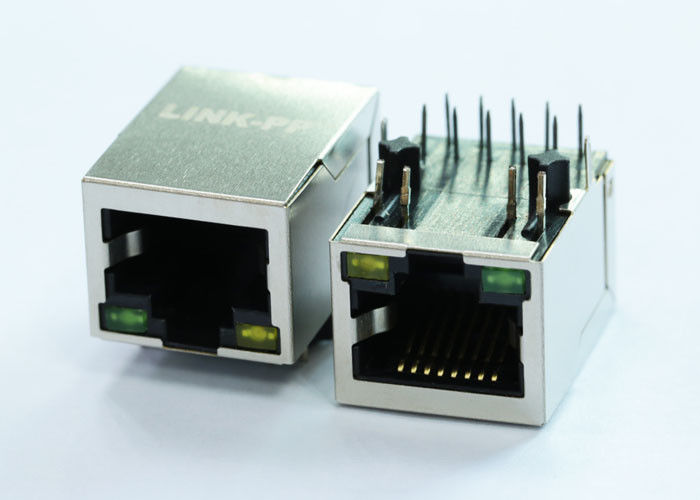

Model Number: ARJM11B3-805-JA-EW2
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Product Name: |
ARJM11B3-805-JA-EW2 |
TAB Direction: |
Down |
Mounting: |
THT PCB Mounting |
LED Indicator: |
Green, Yellow - Green |
Samples: |
Free |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Product Name: |
ARJM11B3-805-JA-EW2 |
TAB Direction: |
Down |
Mounting: |
THT PCB Mounting |
LED Indicator: |
Green, Yellow - Green |
Samples: |
Free |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
| Part Status | Active | |
|---|---|---|
| Connector Type | RJ45 | |
| Number of Ports | 1 | |
| Number of Rows | 1 | |
| Applications | 2.5G Base-T, AutoMDIX | |
| Mounting Type | Through Hole | |
| Orientation | 90° Angle (Right) | |
| Termination | Solder | |
| Height Above Board | 0.535" (13.59mm) | |
| LED Color | Green, Yellow - Green | |
| Number of Cores per Jack | 8 | |
| Shielding | Shielded | |
| Features | Board Lock | |
| Tab Direction | Down | |
| Contact Material | - | |
| Contact Finish | Gold | |
| Operating Temperature | -40°C ~ 85°C | |
| Contact Finish Thickness | 6.00µin (0.152µm) |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
• Manufactured Under Strict Controls.
• 100% Tested (Not Just Batch Tested)
• LINK-PP Is OEM Of TE (Tyco) For 9 Years
• Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
• LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
• Quality Guarantee:6 Years
Competitive Price And Service
• More Competitive Price Than Pulse Tyco Halo And Amphenol
• Free Samples Are Available
• Provide New Design For Customer Requirements
• 90% Off Shipping Cost By DHL UPS DEDEX Or TNT
• Delivery Time:2-3 Weeks After Orders
Professional Certification
Other Part Number
| ARJM11B1-805-NN-ER2-T | ARJM11A1-805-NN-ER2-T | ARJM11D7-809-NN-EW4 |
| ARJM11C7-809-NN-EW4 | ARJM11D7-805-NN-EW4 | ARJM11C7-805-NN-EW4 |
| ARJM11B3-809-AN-CW4 | ARJM11A3-809-AN-CW4 | ARJM11B3-805-AN-CW4 |
| ARJM11A3-805-AN-CW4 | ARJM11B1-809-AN-CW4 | ARJM11A1-809-AN-CW4 |
| ARJM11B1-805-AN-CW4 | ARJM11A1-805-AN-CW4 | ARJM11B1-805-KB-CW2 |
| ARJM11B1-809-JJ-CW2 | ARJM11B1-805-KK-CW2 | ARJM11A1-805-KK-CW2 |
| ARJM11A1-809-KK-CW2 | ARJM11B1-809-KK-CW2 |
