Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO

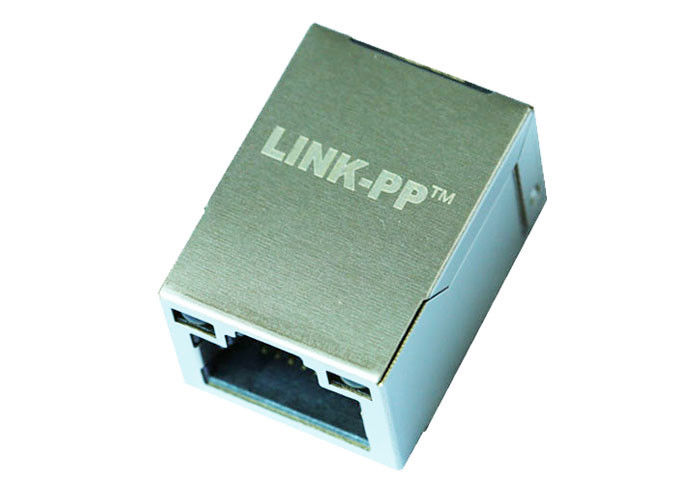

Model Number: ARJM11D7-805-AB-EW2
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Part Number: |
ARJM11D7-805-AB-EW2 |
Samples: |
Active&Available |
Category: |
RJ45 Modular Jack |
Interface: |
Gigabit Ethernet |
Made In China: |
LPJxxxxxxxNL |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Part Number: |
ARJM11D7-805-AB-EW2 |
Samples: |
Active&Available |
Category: |
RJ45 Modular Jack |
Interface: |
Gigabit Ethernet |
Made In China: |
LPJxxxxxxxNL |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
| Part Status | Active | |
|---|---|---|
| Connector Type | RJ45 | |
| Number of Ports | 1 | |
| Number of Rows | 1 | |
| Applications | 2.5G Base-T, AutoMDIX | |
| Mounting Type | Through Hole | |
| Orientation | 90° Angle (Right) | |
| Termination | Solder | |
| Height Above Board | 0.543" (13.80mm) | |
| LED Color | Green - Yellow | |
| Number of Cores per Jack | 8 | |
| Shielding | Shielded | |
| Features | Board Lock | |
| Tab Direction | Up | |
| Contact Material | - | |
| Contact Finish | Gold | |
| Operating Temperature | -40°C ~ 85°C | |
| Contact Finish Thickness | 6.00µin (0.152µm) |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Our Customers :
• Texas Instruments
LINK-PP is the preferred supplier of TI.
Welcome to visit the TI website: http://www.ti.com/tool/beaglebk#0
You will look at our logo "LINK-PP" on BeagleBone Board.
• Intel
LINK-PP Is the preferred supplier of Intel.
LINK-PP LPJG16314A4NL is used in MinnowBoard max of Intel.
• Cisco
LINK-PP Is the preferred supplier of Cisco.
LINK-PP LPJ0011DNL is used in gate way of Cisco. Jabil is the OEM for this project.
Other Part Number
| ARJM11C7-805-JJ-ER2-T |
| ARJM11D7-805-JJ-ER2-T |
| ARJM11C7-809-JJ-ER2-T |
| ARJM11D7-809-JJ-ER2-T |
| ARJM11C7-805-KK-ER2-T |
| ARJM11D7-805-KK-ER2-T |
| ARJM11C7-809-KK-ER2-T |
| ARJM11D7-809-KK-ER2-T |
| ARJM11A1-809-AB-ER2-T |
| ARJM11B1-809-AB-ER2-T |
