Home > products > Magnetic RJ45 Jack > ARJM11A1-809-AB-EW4 2.5G Base - T Ehternet 1X1 RJ45 Modular Jack

ARJM11A1-809-AB-EW4 2.5G Base - T Ehternet 1X1 RJ45 Modular Jack

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: ARJM11A1-809-AB-EW4

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.5-$3.5

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price
Highlight:

stacked rj45 connectors

,

rj45 magnetic jack

Pn#:
ARJM11A1-809-AB-EW4
Equivalent:
LPJxxxxxNL
Interface:
2.5G Base-T
Samples:
Available 2-3 Pcs
LED Option:
Green - Yellow
File:
PDF/3D/ISG/Stp/Step/Datasheet
Pn#:
ARJM11A1-809-AB-EW4
Equivalent:
LPJxxxxxNL
Interface:
2.5G Base-T
Samples:
Available 2-3 Pcs
LED Option:
Green - Yellow
File:
PDF/3D/ISG/Stp/Step/Datasheet

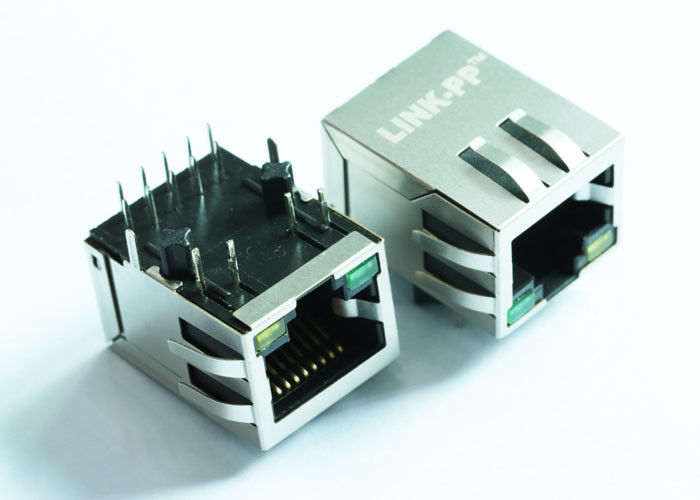

ARJM11A1-809-AB-EW4 2.5G Base - T Ehternet 1X1 RJ45 Modular Jack
ARJM11A1-809-AB-EW4 2.5G Base - T Ehternet 1X1 RJ45 Modular Jack



1. 1 x 2.5G Mbit Ehternet

2. Right Angle Rj45 8 Position

3. Tab-down, Green - Yellow

4. Hipot from Imput to output : 1500Vrms



Description:

Part Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 2.5G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.535" (13.59mm)
LED Color Green - Yellow
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Features Board Lock
Tab Direction Down
Contact Material -
Contact Finish Gold
Operating Temperature -40°C ~ 85°C
Contact Finish Thickness 30.0µin (0.76µm)




Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers



100% Guarantee Qualtiy

•Manufactured Under Strict Controls.

•100% Tested (Not Just Batch Tested)

•LINK-PP Is OEM Of TE (Tyco) For 9 Years

•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

•Quality Guarantee:6 Years



546-844-19 Magnetic RJ45 1000 Base - T Jack Female Connector LPJK0071CNL



Professional Certification

•ISO 9001:2008

•UL Certification

•Reach Cetitifaction

•RoHS Compliance

•Active Environmental Policy



Competitive Price And Service

•More Competitive Price Than Pulse Tyco Halo And Amphenol

•Free Samples Are Available

•Provide New Design For Customer Requirements

•90% Off Shipping Cost By DHL UPS DEDEX Or TNT

•Delivery Time:2-3 Weeks After Orders



Other Part Number



ARJM11B1-805-KK-EW2
ARJM11A1-809-KK-EW2
ARJM11B1-809-KK-EW2
ARJM11A3-805-JJ-EW2
ARJM11B3-805-JJ-EW2
ARJM11A3-809-JJ-EW2
ARJM11B3-809-JJ-EW2
ARJM11A3-805-KK-EW2
ARJM11B3-805-KK-EW2
ARJM11A3-809-KK-EW2
ARJM11B3-809-KK-EW2
