Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO

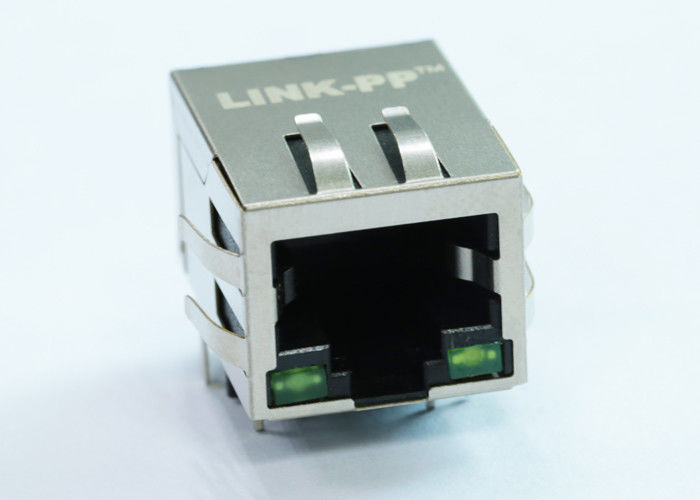

Model Number: ARJM11A1-809-AD-EW4
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Product Name: |
ARJM11A1-809-AD-EW4 |
Made In China Cross: |
LPJxxxxxNL |
Samples: |
Free Available |
Mass Production: |
3-4 Weeks |
Manufacturer: |
LINK-PP |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Product Name: |
ARJM11A1-809-AD-EW4 |
Made In China Cross: |
LPJxxxxxNL |
Samples: |
Free Available |
Mass Production: |
3-4 Weeks |
Manufacturer: |
LINK-PP |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
| Part Status | Active | |
|---|---|---|
| Connector Type | RJ45 | |
| Number of Ports | 1 | |
| Number of Rows | 1 | |
| Applications | 2.5G Base-T, AutoMDIX | |
| Mounting Type | Through Hole | |
| Orientation | 90° Angle (Right) | |
| Termination | Solder | |
| Height Above Board | 0.535" (13.59mm) | |
| LED Color | Green - Orange | |
| Number of Cores per Jack | 8 | |
| Shielding | Shielded, EMI Finger | |
| Features | Board Lock | |
| Tab Direction | Down | |
| Contact Material | - | |
| Contact Finish | Gold | |
| Operating Temperature | -40°C ~ 85°C | |
| Contact Finish Thickness | 30.0µin (0.76µm) |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•LINK-PP Is OEM Of TE (Tyco) For 9 Years
•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
•Quality Guarantee:6 Years
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:2-3 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
•90% Off Shipping Cost By DHL UPS DEDEX Or TNT
LINK-PP Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• LINK-PP Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
Professional Certification
Other Part Number
| ARJM11A1-805-AN-EW4 |
| ARJM11B1-805-AN-EW4 |
| ARJM11A1-809-AN-EW4 |
| ARJM11B1-809-AN-EW4 |
| ARJM11A3-805-AN-EW4 |
| ARJM11B3-805-AN-EW4 |
| ARJM11A3-809-AN-EW4 |
| ARJM11B3-809-AN-EW4 |
| ARJM11C7-805-AN-ER4-T |
| ARJM11D7-805-AN-ER4-T |
| ARJM11C7-809-AN-ER4-T |
| ARJM11D7-809-AN-ER4-T |
