Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO

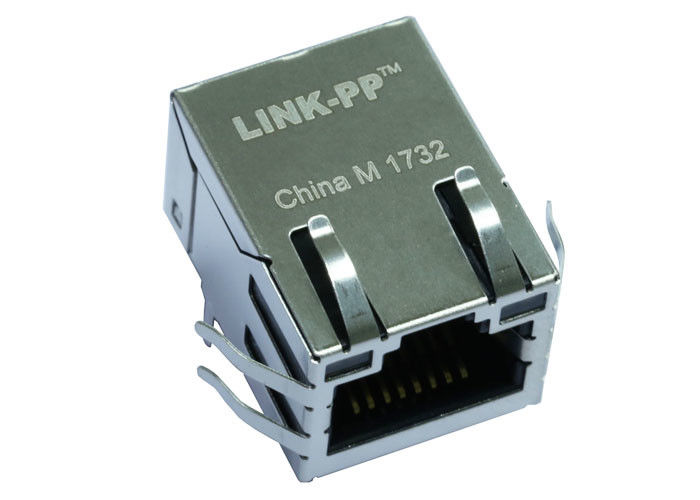

Model Number: ARJM11C7-809-KB-CW2
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 20pcs/Tray or Reel
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 100K-PCS/Month
Specifications: |
ARJM11C7-809-KB-CW2 |
Part No: |
LPJxxxxxNL |
Standard: |
IEEE802.3 |
Mounting: |
THT |
Family: |
Integrated Magnetic Rj45 Connector |
Files: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specifications: |
ARJM11C7-809-KB-CW2 |
Part No: |
LPJxxxxxNL |
Standard: |
IEEE802.3 |
Mounting: |
THT |
Family: |
Integrated Magnetic Rj45 Connector |
Files: |
PDF/3D/ISG/Stp/Step/Datasheet |
| Part Status | Active | |
|---|---|---|
| Connector Type | RJ45 | |
| Number of Ports | 1 | |
| Number of Rows | 1 | |
| Applications | 2.5G Base-T, AutoMDIX | |
| Mounting Type | Through Hole | |
| Orientation | 90° Angle (Right) | |
| Termination | Solder | |
| Height Above Board | 0.543" (13.80mm) | |
| LED Color | Green, Orange - Yellow | |
| Number of Cores per Jack | 8 | |
| Shielding | Shielded, EMI Finger | |
| Features | Board Lock | |
| Tab Direction | Up | |
| Contact Material | - | |
| Contact Finish | Gold | |
| Operating Temperature | 0°C ~ 70°C | |
| Contact Finish Thickness | 6.00µin (0.152µm) |
Quality
World’s Leader supplier of Integrated RJ45 Connector and Discrete Magnetic Transformers.
Original materials suppliers are selected and appointed by Tyco Electronic ,and then put into production at the standard of Tyco Electronic .
| Texas Instruments | INTEL | SAMSUNG | FLUKE | EKF | HUAWEI | IBM | CISCO |
| FLEXTRONICS | JABIL | Foxconn | CANON | Arduino | -- | --- | --- |
LINK-PP RJ45 Designed for BeagleBone Black of Texas Instruments
LINK-PP is the preferred supplier of Texas Instruments ,Samsung, Cisco ,Siemens and INTEL.
Welcome to visit the Texas Instruments's websit: http://www.ti.com/tool/beaglebk#0 You will look at our logo "LINK-PP”on BeagleBone Board
LINK-PP ------------ Appointed Supplier And Supporter Of Embedded System for Ti
Applications For Terminal User
Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
