ARJM11A1-811-AN-CW2 Tab Down 5G Base-T Magnetic RJ45 Modular Jack

ARJM11A1-811-AN-CW2 Tab Down 5G Base-T Magnetic RJ45 Modular Jack
ARJM11A1-811-AN-CW2 Tab Down 5G Base-T Magnetic RJ45 Modular Jack ARJM11A1-811-AN-CW2 Tab Down 5G Base-T Magnetic RJ45 Modular Jack ARJM11A1-811-AN-CW2 Tab Down 5G Base-T Magnetic RJ45 Modular Jack

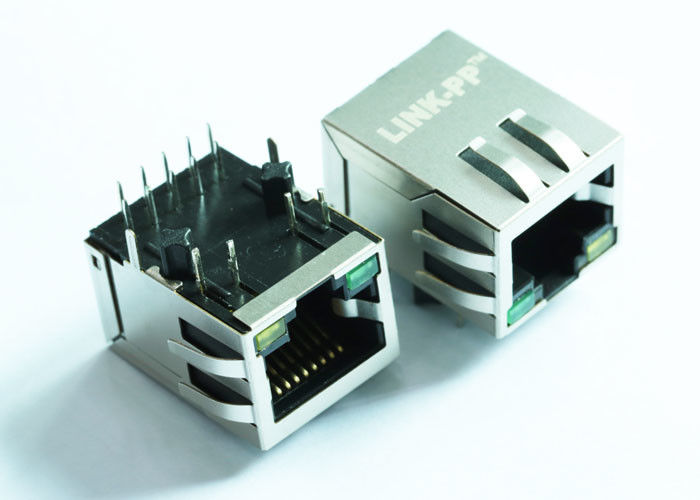

Large Image :  ARJM11A1-811-AN-CW2 Tab Down 5G Base-T Magnetic RJ45 Modular Jack

Product Details:
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: ARJM11A1-811-AN-CW2
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Detailed Product Description
Part Number: ARJM11A1-811-AN-CW2 Termination: Solder
Latch: Tab Down Samples: Available 1-5 Pcs
File: PDF/3D/ISG/Stp/Step/Datasheet Sample: Free
High Light:

modular jacks rj45

,

industrial rj45 connector

ARJM11A1-811-AN-CW2 Tab Down 5G Base-T Magnetic RJ45 Modular Jack



Number of Ports 1
Number of Rows 1
Applications 5G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.535" (13.59mm)
LED Color Green
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Features Board Lock
Tab Direction Down
Contact Material -
Contact Finish Gold
Operating Temperature 0°C ~ 70°C
Contact Finish Thickness 6.00µin (0.152µm)



Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers



100% Guarantee Qualtiy

• Manufactured Under Strict Controls.

• 100% Tested (Not Just Batch Tested)

• LINK-PP Is OEM Of TE (Tyco) For 9 Years

• Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

• LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

• Quality Guarantee:6 Years



Competitive Price And Service

• More Competitive Price Than Pulse Tyco Halo And Amphenol

• Delivery Time:2-3 Weeks After Orders

• Free Samples Are Available

• Provide New Design For Customer Requirements

• 90% Off Shipping Cost By DHL UPS DEDEX Or TNT



Professional Certification

• ISO 9001:2008

• UL Certification

• Reach Cetitifaction

• RoHS Compliance

• Active Environmental Policy



LINK-PP Corporate Policy

• The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

Through Continuous Improvements In Quality, Delivery And Service

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services



Business partner

LINK-PP Is The Preferred Designer and Manufacturer of Intel, Intel MinnowBoard MAX Supported by LINK-PP Magnetic RJ45 PN#LPJG16314A4NL.

For any further information,Welcome to visit www.intel.com, you will find out our logo"LINK-PP" on MinnowBoard MAX .

RM3-ZZ-0078 RJ45 10/100/1000Base-TX 2x1 Jack with Magnetic LPJG17549B47NL

Applications For Terminal User
Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...



Other Part Number

ARJM11B1-805-NN-ER2-T ARJM11A1-805-NN-ER2-T ARJM11D7-809-NN-EW4
ARJM11C7-809-NN-EW4 ARJM11D7-805-NN-EW4 ARJM11C7-805-NN-EW4
ARJM11B3-809-AN-CW4 ARJM11A3-809-AN-CW4 ARJM11B3-805-AN-CW4
ARJM11A3-805-AN-CW4 ARJM11B1-809-AN-CW4 ARJM11A1-809-AN-CW4
ARJM11B1-805-AN-CW4 ARJM11A1-805-AN-CW4 ARJM11B1-805-KB-CW2
ARJM11B1-809-JJ-CW2 ARJM11B1-805-KK-CW2 ARJM11A1-805-KK-CW2
ARJM11A1-809-KK-CW2 ARJM11B1-809-KK-CW2
