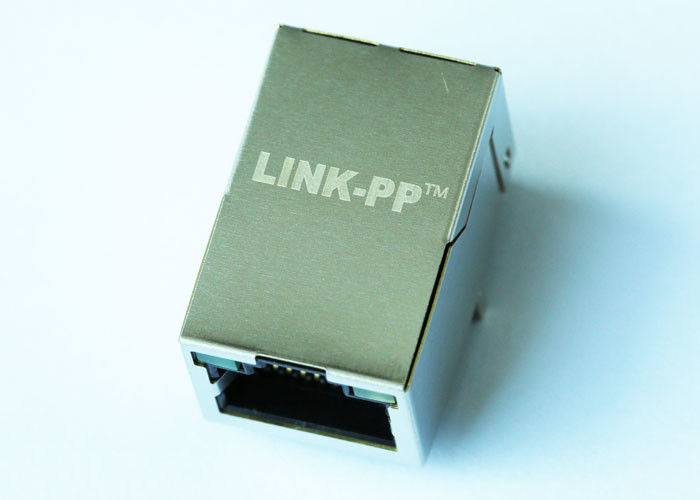

ARJM11D7-809-KB-EW2 RJ45 Modular Jack Socket W/Transfomer 2.5G Mbit

ARJM11D7-809-KB-EW2 RJ45 Modular Jack Socket W/Transfomer 2.5G Mbit
ARJM11D7-809-KB-EW2 RJ45 Modular Jack Socket W/Transfomer 2.5G Mbit ARJM11D7-809-KB-EW2 RJ45 Modular Jack Socket W/Transfomer 2.5G Mbit

Large Image :  ARJM11D7-809-KB-EW2 RJ45 Modular Jack Socket W/Transfomer 2.5G Mbit

Product Details:
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: ARJM11D7-809-KB-EW2
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Detailed Product Description
Specifications: ARJM11D7-809-KB-EW2 Cross P / N: LPJxxxxNL
Ethernet: 1x 2.5GMbps Samples: Available 2 Psc
EMI-finger: Optional LED: Green, Orange - Yellow
High Light:

modular jacks rj45

,

industrial rj45 connector

ARJM11D7-809-KB-EW2 RJ45 Modular Jack Socket W/Transfomer 2.5G Mbit
  • Designed for network interface card application.
  • Designed to meet IEEE802.3u requirement.
  • Simplest magnetic component to place androute on PCB.
  • 2.5 gigabit ethernet
  • Magnetics Rj45 ARJM11D7-809-KB-EW2
  • Rj45 integrated magnetics
  • LED optional , EMI-finger Optional
Part Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 2.5G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.543" (13.80mm)
LED Color Green, Orange - Yellow
Number of Cores per Jack 8
Shielding Shielded
Features Board Lock
Tab Direction Up
Contact Material -
Contact Finish Gold
Operating Temperature -40°C ~ 85°C
Contact Finish Thickness 6.00µin (0.152µm)

Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:
2600 staff,
100% test
Flexible delivery time



Main Customer
Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......

J3011G21DNLT SMT 1x1 Port RJ45 Magjack Connector With 10/100M

J3011G21DNLT SMT 1x1 Port RJ45 Magjack Connector With 10/100M

EMS Application Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly



Applications For Terminal User
Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...



Other Part Number

ARJM11B1-805-NN-ER2-T ARJM11A1-805-NN-ER2-T ARJM11D7-809-NN-EW4
ARJM11C7-809-NN-EW4 ARJM11D7-805-NN-EW4 ARJM11C7-805-NN-EW4
ARJM11B3-809-AN-CW4 ARJM11A3-809-AN-CW4 ARJM11B3-805-AN-CW4
ARJM11A3-805-AN-CW4 ARJM11B1-809-AN-CW4 ARJM11A1-809-AN-CW4
ARJM11B1-805-AN-CW4 ARJM11A1-805-AN-CW4 ARJM11B1-805-KB-CW2
ARJM11B1-809-JJ-CW2 ARJM11B1-805-KK-CW2 ARJM11A1-805-KK-CW2
ARJM11A1-809-KK-CW2 ARJM11B1-809-KK-CW2
