LINK-PP INT'L TECHNOLOGY CO., LIMITED
Home ProductsRJ45 Modular Jack

ARJM11B1-805-JA-ER2-T Rj45 Modular Jack Solder RA Thru-Hole 8 Terminal 2.5G

China LINK-PP INT'L TECHNOLOGY CO., LIMITED certification
China LINK-PP INT'L TECHNOLOGY CO., LIMITED certification
WOW , 100% Tested ,Zero Defective

—— TI

LINK-PP is Our Best Supplier in China

—— Intel

Thanks a Lot For Supplying Excellent RJ45 And Transformer ,LINK-PP Deserve the Consideration Worldwidely

—— Cisco

LINK-PP is Flex type A Vendor For All RJ45 Connector and Transformer

—— Flextronics

I'm Online Chat Now

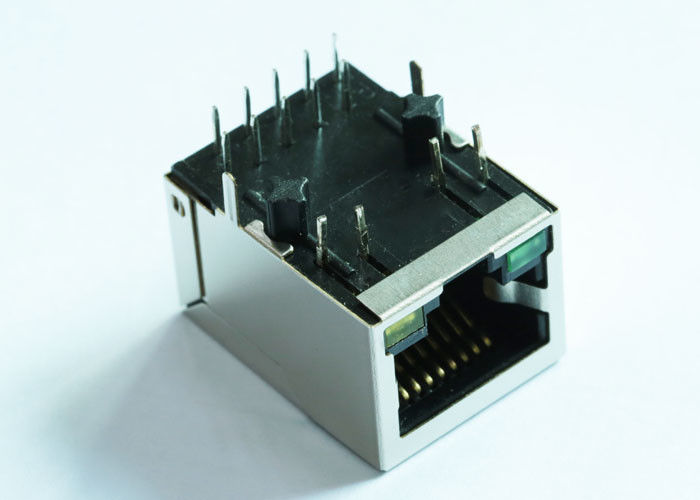

ARJM11B1-805-JA-ER2-T Rj45 Modular Jack Solder RA Thru-Hole 8 Terminal 2.5G

ARJM11B1-805-JA-ER2-T Rj45 Modular Jack Solder RA Thru-Hole 8 Terminal 2.5G
ARJM11B1-805-JA-ER2-T Rj45 Modular Jack Solder RA Thru-Hole 8 Terminal 2.5G ARJM11B1-805-JA-ER2-T Rj45 Modular Jack Solder RA Thru-Hole 8 Terminal 2.5G

Large Image :  ARJM11B1-805-JA-ER2-T Rj45 Modular Jack Solder RA Thru-Hole 8 Terminal 2.5G

Product Details:
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: ARJM11B1-805-JA-ER2-T
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Detailed Product Description
Specifications: ARJM11B1-805-JA-ER2-T P.N: LPJxxxxNL
Cores: 8 Apllication: 2.5G Base-Tx
Original Munafactuer: LINK-PP Samples: Free
High Light:

rj-45 ethernet jack

,

modular jacks rj45

ARJM11B1-805-JA-ER2-T Rj45 Modular Jack Solder RA Thru-Hole 8 Terminal 2.5G

Number of Ports 1
Number of Rows 1
Applications 2.5G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.535" (13.59mm)
LED Color Green, Yellow - Green
Number of Cores per Jack 8
Shielding Shielded
Features Board Lock
Tab Direction Down
Contact Material -
Contact Finish Gold
Operating Temperature -40°C ~ 85°C
Contact Finish Thickness 6.00µin (0.152µm)



APPLICATIONS:

  • Point of Sale and Kiosk Computers
  • Vector Network Analyzers
  • CompactPCI and PXI Products
  • VME, VPX, and VXI Extenders
Main Customer
Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......

J3011G21DNLT SMT 1x1 Port RJ45 Magjack Connector With 10/100M

J3011G21DNLT SMT 1x1 Port RJ45 Magjack Connector With 10/100M

Why Choose Us

Quick Response---we are commited to deliver our quick response within one hour in working time and 24 hours in holiday.

Over 20 Years’ Experience---we’ve been in this field since 1997.and designed and produced wide range of products with our professional R&D team and Sales.

Competitive Price---we continuously strive to find ways of reducing our production costs, and passing the savings to our valued customers.

Quality Assurance---we are commited to provide high quality products and professional service. Which comply with CE RoHS.

Fast Delivery---kinds of shipment ways for your selection at lowest cost,3-5 days for samples.7-10 days for bulk purchase.

Free Sample---we offer you free samples to test the quality and dimensions before bulk purchase. We help you to controlyour risk.

Professional Certification---ISO 9001:2008,ISO 14001:2008, UL CE FCC Reach Certification, RoHS Compliance


EMS ApplicationBuilt-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly



Other Part Number

ARJM11A1-805-AD-ER2-T
ARJM11B1-805-AD-ER2-T
ARJM11A1-809-AD-ER2-T
ARJM11B1-809-AD-ER2-T
ARJM11A3-805-AB-ER2-T
ARJM11A3-805-AD-ER2-T
ARJM11B3-805-AB-ER2-T
ARJM11B3-805-AD-ER2-T
ARJM11A3-809-AB-ER2-T
ARJM11A3-809-AD-ER2-T
ARJM11B3-809-AB-ER2-T
ARJM11B3-809-AD-ER2-T
ARJM11A1-805-NN-ER4-T
ARJM11B1-805-NN-ER4-T
ARJM11A1-809-NN-ER4-T
ARJM11B1-809-NN-ER4-T
