ARJM11A1-809-JA-ER2-T RJ45 Modular Connectors With 2.5G Integrated Magnetics

ARJM11A1-809-JA-ER2-T RJ45 Modular Connectors With 2.5G Integrated Magnetics
ARJM11A1-809-JA-ER2-T RJ45 Modular Connectors With 2.5G Integrated Magnetics ARJM11A1-809-JA-ER2-T RJ45 Modular Connectors With 2.5G Integrated Magnetics ARJM11A1-809-JA-ER2-T RJ45 Modular Connectors With 2.5G Integrated Magnetics

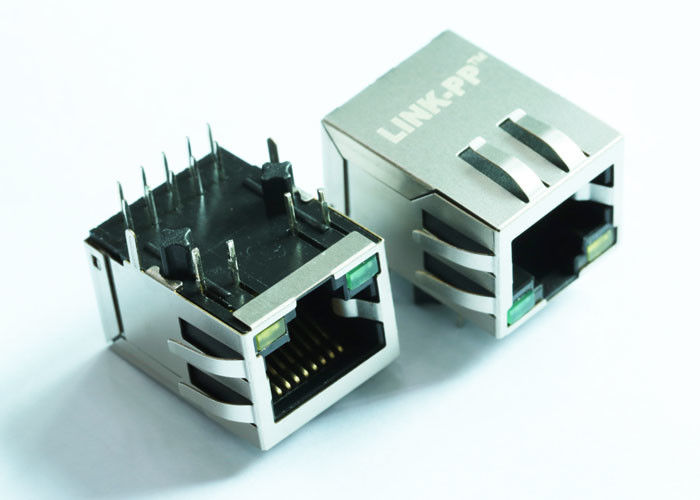

Large Image :  ARJM11A1-809-JA-ER2-T RJ45 Modular Connectors With 2.5G Integrated Magnetics

Product Details:
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: ARJM11A1-809-JA-ER2-T
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4800K-PCS/Month
Detailed Product Description
Specification: ARJM11A1-809-JA-ER2-T Cross Part No: LPJxxxxxxNL
Base: 1x2.5GMbps Indicator: Green, Yellow - Green
Mounting: R/A Shield Samples: Available Free
High Light:

rj-45 ethernet jack

,

industrial rj45 connector

ARJM11A1-809-JA-ER2-T RJ45 Modular Connectors With 2.5G Integrated Magnetics
  • 1X1 Tab-Down RJ45 ARJM11A1-809-JA-ER2-T 2.5GMbps Ethernet
  • RJ45 Integrated Magnetics Connector ARJM11A1-809-JA-ER2-T
  • Cross Equivalent ARJM11A1-809-JA-ER2-T Pin to Pin Replace Cost-Effective
  • Designed for industrial rated applications , Meets IEEE802.3 specification
  • 350μH minimum OCL with 8mA DC bias current
  • Extended Temperature range from -40°C ~ 85°C
Part Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 2.5G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.535" (13.59mm)
LED Color Green, Yellow - Green
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Features Board Lock
Tab Direction Down
Contact Material -
Contact Finish Gold
Operating Temperature -40°C ~ 85°C
Contact Finish Thickness 6.00µin (0.152µm)



Applications For Terminal User
Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...

Main Customer
Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......

EMS Application
Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly



Main Customer
Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......

J3011G21DNLT SMT 1x1 Port RJ45 Magjack Connector With 10/100M

J3011G21DNLT SMT 1x1 Port RJ45 Magjack Connector With 10/100M

EMS ApplicationBuilt-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly



Other Part Number

ARJM11C7-805-JJ-ER4-T
ARJM11D7-805-JJ-ER4-T
ARJM11C7-809-JJ-ER4-T
ARJM11D7-809-JJ-ER4-T
ARJM11C7-805-KK-ER4-T
ARJM11D7-805-KK-ER4-T
ARJM11C7-809-KK-ER4-T
ARJM11D7-809-KK-ER4-T
ARJM11C7-805-KB-EW2
ARJM11D7-805-KB-EW2
ARJM11A1-805-AN-ER2-T
ARJM11B1-805-AN-ER2-T
ARJM11A1-809-AN-ER2-T
ARJM11B1-809-AN-ER2-T
ARJM11A3-805-AN-ER2-T
ARJM11B3-805-AN-ER2-T
ARJM11A3-809-AN-ER2-T
ARJM11B3-809-AN-ER2-T
ARJM11C7-809-KB-CW2
ARJM11D7-809-KB-CW2
