ARJM11B1-811-KK-CW2 / ARJM11B3-811-KK-CW2 1 Port RJ45 Ethernet Jack 5G Base-T

ARJM11B1-811-KK-CW2 / ARJM11B3-811-KK-CW2 1 Port RJ45 Ethernet Jack 5G Base-T
ARJM11B1-811-KK-CW2 / ARJM11B3-811-KK-CW2 1 Port RJ45 Ethernet Jack 5G Base-T ARJM11B1-811-KK-CW2 / ARJM11B3-811-KK-CW2 1 Port RJ45 Ethernet Jack 5G Base-T ARJM11B1-811-KK-CW2 / ARJM11B3-811-KK-CW2 1 Port RJ45 Ethernet Jack 5G Base-T

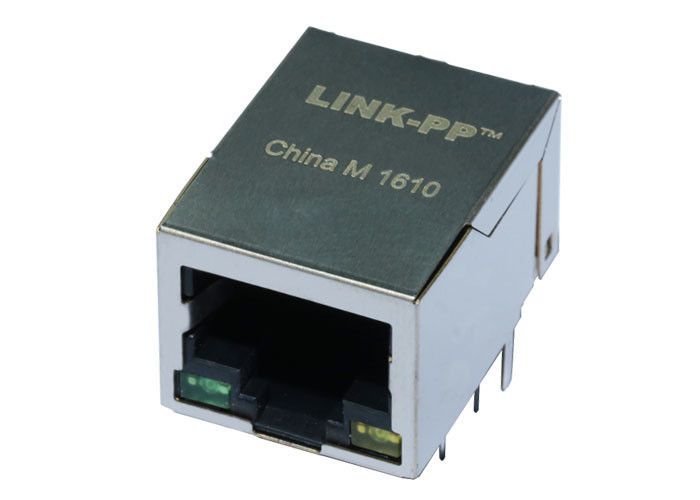

Large Image :  ARJM11B1-811-KK-CW2 / ARJM11B3-811-KK-CW2 1 Port RJ45 Ethernet Jack 5G Base-T

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: ARJM11B1-811-KK-CW2

Payment & Shipping Terms:

Minimum Order Quantity: 200/500//1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,Paypal,West Union
Supply Ability: 4200K-PCS/Month
Detailed Product Description
Part Number: ARJM11B3-811-KK-CW2 Application: 5G Base-T
Termination: Solder LEDs: Green, Orange - Green, Orange
Sample: Free
High Light:

modular jacks rj45

,

industrial rj45 connector

ARJM11B1-811-KK-CW2 / ARJM11B3-811-KK-CW2 1 Port RJ45 Ethernet Jack 5G Base-T



Part Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 5G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.535" (13.59mm)
LED Color Green, Orange - Green, Orange
Number of Cores per Jack 8
Shielding Shielded
Features Board Lock
Tab Direction Down
Contact Material -
Contact Finish Gold
Operating Temperature 0°C ~ 70°C
Contact Finish Thickness 6.00µin (0.152µm)



ARJM11B1-811-KK-CW2 / ARJM11B3-811-KK-CW2 1 Port RJ45 Ethernet Jack 5G Base-T 0

Applications For Terminal User

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...



Competitive Advantage

18 years production experience,

2600 staff,

100% test

Flexible delivery time



Main Customer

Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......



EMS Application

Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly



FAQ

Q:Are you a factory or a trading company?

A:We are factory with 6 production line assembled workshop and a Stamping Workshop,about 200 employees.

Q: Can I get some samples?

A: Yes, sample order is available, some samples are free. and it will be freight collect payment.

Q : How long is your lead time?

A: Normally, our lead time is 10-25 days according to different products.

Q: What's your payment term?

A: We accept TT/LC/DP/DA/Paypal/Western Union/MoneyGram

Q: Why choose our company?

A: 1. Professional manufacturer since 1997, provide various kinds of connectors and LAN Transformer

2. No MOQ demand.

3. Good quality, competitive price with best service.

4. Available for ODM/OEM order.



Other Part Number

ARJM11B1-805-NN-ER2-T ARJM11A1-805-NN-ER2-T ARJM11D7-809-NN-EW4
ARJM11C7-809-NN-EW4 ARJM11D7-805-NN-EW4 ARJM11C7-805-NN-EW4
ARJM11B3-809-AN-CW4 ARJM11A3-809-AN-CW4 ARJM11B3-805-AN-CW4
ARJM11A3-805-AN-CW4 ARJM11B1-809-AN-CW4 ARJM11A1-809-AN-CW4
ARJM11B1-805-AN-CW4 ARJM11A1-805-AN-CW4 ARJM11B1-805-KB-CW2
ARJM11B1-809-JJ-CW2 ARJM11B1-805-KK-CW2 ARJM11A1-805-KK-CW2
ARJM11A1-809-KK-CW2 ARJM11B1-809-KK-CW2
