| PN.1: | ARJM11A1-811-KB-ER4-T | PN.2: | ARJM11A3-811-KB-ER4-T |
|---|---|---|---|
| Schematic: | 8 Coils,1CT:1CT | Speed: | 5GMbps X 1 |
| Operating Temperature: | -40°C ~ 85°C | LED Color: | Green&Orange/Yellow |
| Highlight: | rj45 magnetic jack,shielded rj45 plugs |
||

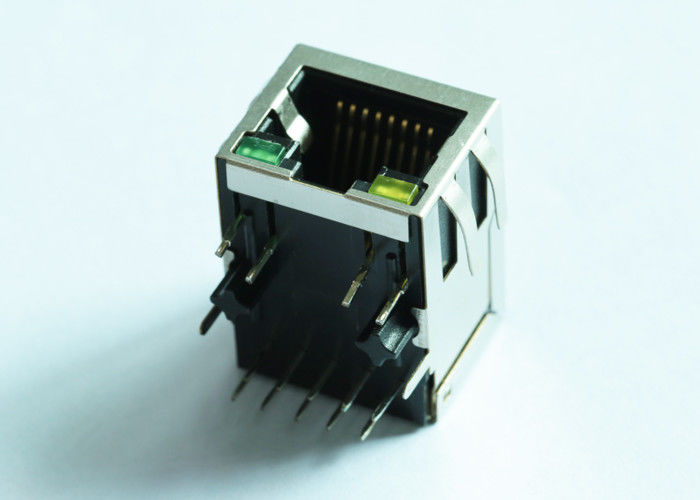

| 1x1 Port 8P8C RJ45 Jack Connector with 5G Base-T Integrated Magnetics, Green&Orange/Yellow LED,Tab Down,RoHS | |
| LINK-PP Part Number | LPJGxxxxNL |
| Abracon LLC Part Number | ARJM11A1-811-KB-ER4-T / ARJM11A3-811-KB-ER4-T |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 8 |
| Diodes | NO DIODES |
| LED Option | Green&Orange/Yellow LEDs |
| Latch | TAB Down |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.535 |
| Package Height (mm) | 13.60 |
| Package Length (Inches) | 0.839 |
| Package Length (mm) | 21.30 |
| Package Width (Inches) | 0.626 |
| Package Width (mm) | 15.90 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | With |
| Speed | 5G Base-T |
| Temperature | -40°C ~ 85°C |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
