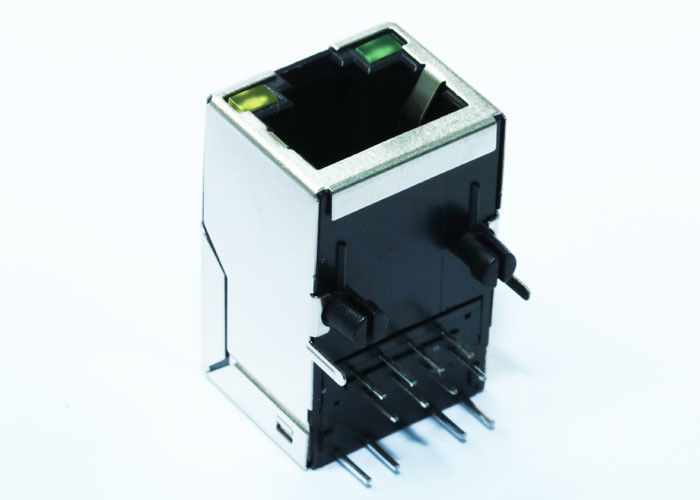

ARJM11D7-811-AN-CW4 Single Port RJ45 Modular Jack Shielded With 5G Base - T

ARJM11D7-811-AN-CW4 Single Port RJ45 Modular Jack Shielded With 5G Base - T
ARJM11D7-811-AN-CW4 Single Port RJ45 Modular Jack Shielded With 5G Base - T ARJM11D7-811-AN-CW4 Single Port RJ45 Modular Jack Shielded With 5G Base - T ARJM11D7-811-AN-CW4 Single Port RJ45 Modular Jack Shielded With 5G Base - T

Large Image :  ARJM11D7-811-AN-CW4 Single Port RJ45 Modular Jack Shielded With 5G Base - T

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH
Model Number: ARJM11D7-811-AN-CW4

Payment & Shipping Terms:

Minimum Order Quantity: 200/500//1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 2 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 4200K-PCS/Month
Detailed Product Description
Product Category: ARJM11D7-811-AN-CW4 Cable System: Cat 5/5e
Termination Style: Through Hole Gender: RJ45 Female
Termination: Solder Pin To Pin: LPJxxxxxNL = ARJM11D7-811-AN-CW4
High Light:

modular jacks rj45

,

industrial rj45 connector

ARJM11D7-811-AN-CW4 Single Port RJ45 Modular Jack Shielded With 5G Base - T

Part StatusActive
Connector TypeRJ45
Number of Ports1
Number of Rows1
Applications5G Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Height Above Board0.543" (13.80mm)
LED ColorGreen
Number of Cores per Jack8
ShieldingShielded
FeaturesBoard Lock
Tab DirectionUp
Contact Material-
Contact FinishGold
Operating Temperature0°C ~ 70°C
Contact Finish Thickness30.0µin (0.76µm)


ARJM11D7-811-AN-CW4 Single Port RJ45 Modular Jack Shielded With 5G Base - T 0

TECHNICAL CHARACTERISTICS
INSULATOR: PBT
FLAMMABILITY RATING: UL94-V0
COLOR: BLACK
CONTACT MATERIAL: PHOSPHOR BRONZE
CONTACT TYPE: STAMPED
CONTACT PLATING: GOLD
SHIELDING: BRONZE NI PLATED
QUALITY CLASS: 500 MATING CYCLES
ENVIRONMENTAL
OPERATING TEMPERATURE: -40 TO 85°C
COMPLIANCE: LEAD FREE AND ROHS
ELECTRICAL
CURRENT RATING: 1.5A
WORKING VOLTAGE: 120VAC
INSULATOR RESISTANCE: >1000 MΩ
DIELECTRIC WITHSTANDING VOLTAGE: 1000 VAC/MIN
CONTACT RESISTANCE: 20 mΩ MAX
STANDARD
CERTIFIED: E324776
SOLDERING:
JEDEC LEAD FREE WAVE SOLDERING PROCESS
PACKAGING :TRAY

Applications For Terminal User
Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...



EMS Application
Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly


FAQ
Q:Are you a factory or a trading company?
A:We are factory direct sales, have quality assurance, and can also meet your customization requirements.
Q:Can I get a free sample?
A:Of course, you can get 3-5 samples, and you need to pay for the shipping cost of the sample.
Q:How long is your delivery?
A:5-7 days in case of stock, normal is 2-3 weeks delivery
Q:What are your payment terms?
A:TT/LC/DP/DA/Paypal/Western Union/MoneyGram
