ARJM11D7-811-JJ-EW2 Single Port RJ45 Modular Jack Shielded With 5G Base-T

China ARJM11D7-811-JJ-EW2 Single Port RJ45 Modular Jack Shielded With 5G Base-T supplier
ARJM11D7-811-JJ-EW2 Single Port RJ45 Modular Jack Shielded With 5G Base-T supplier ARJM11D7-811-JJ-EW2 Single Port RJ45 Modular Jack Shielded With 5G Base-T supplier

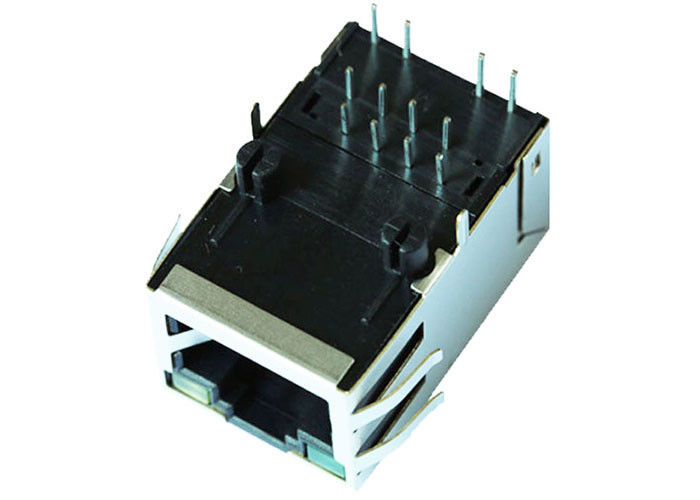

Large Image :  ARJM11D7-811-JJ-EW2 Single Port RJ45 Modular Jack Shielded With 5G Base-T

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH
Model Number: ARJM11D7-811-JJ-EW2

Payment & Shipping Terms:

Minimum Order Quantity: 200/500//1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 2 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 4200K-PCS/Month
Contact Now
Detailed Product Description
Product Category: ARJM11D7-811-JJ-EW2 Cable System: Cat 5/5e
Termination Style: Through Hole Gender: RJ45 Female
Termination: Solder Pin To Pin: LPJxxxxxNL = ARJM11D7-811-JJ-EW2

ARJM11D7-811-JJ-EW2 Single Port RJ45 Modular Jack Shielded With 5G Base-T



Part Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 5G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.543" (13.80mm)
LED Color Green, Orange - Green, Orange
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Features Board Lock
Tab Direction Up
Contact Material -
Contact Finish Gold
Operating Temperature -40°C ~ 85°C
Contact Finish Thickness 6.00µin (0.152µm)



ARJM11D7-811-JJ-EW2 Single Port RJ45 Modular Jack Shielded With 5G Base-T

TECHNICAL CHARACTERISTICS
INSULATOR: PBT
FLAMMABILITY RATING: UL94-V0
COLOR: BLACK
CONTACT MATERIAL: PHOSPHOR BRONZE
CONTACT TYPE: STAMPED
CONTACT PLATING: GOLD
SHIELDING: BRONZE NI PLATED
QUALITY CLASS: 500 MATING CYCLES
ENVIRONMENTAL
OPERATING TEMPERATURE: -40 TO 85°C
COMPLIANCE: LEAD FREE AND ROHS
ELECTRICAL
CURRENT RATING: 1.5A
WORKING VOLTAGE: 120VAC
INSULATOR RESISTANCE: >1000 MΩ
DIELECTRIC WITHSTANDING VOLTAGE: 1000 VAC/MIN
CONTACT RESISTANCE: 20 mΩ MAX
STANDARD
CERTIFIED: E324776
SOLDERING:
JEDEC LEAD FREE WAVE SOLDERING PROCESS
PACKAGING :TRAY

Applications For Terminal User
Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...



EMS Application
Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly



FAQ

Q:Are you a factory or a trading company?

A:We are factory direct sales, have quality assurance, and can also meet your customization requirements.

Q:Can I get a free sample?

A:Of course, you can get 3-5 samples, and you need to pay for the shipping cost of the sample.

Q:How long is your delivery?

A:5-7 days in case of stock, normal is 2-3 weeks delivery

Q:What are your payment terms?

A:TT/LC/DP/DA/Paypal/Western Union/MoneyGram
