ARJM11A1-811-AB-CW2 / ARJM11A3-811-AB-EW2 5G Base-T LAN RJ45 Jack With Magnetics

China ARJM11A1-811-AB-CW2 / ARJM11A3-811-AB-EW2 5G Base-T LAN RJ45 Jack With Magnetics supplier
ARJM11A1-811-AB-CW2 / ARJM11A3-811-AB-EW2 5G Base-T LAN RJ45 Jack With Magnetics supplier ARJM11A1-811-AB-CW2 / ARJM11A3-811-AB-EW2 5G Base-T LAN RJ45 Jack With Magnetics supplier

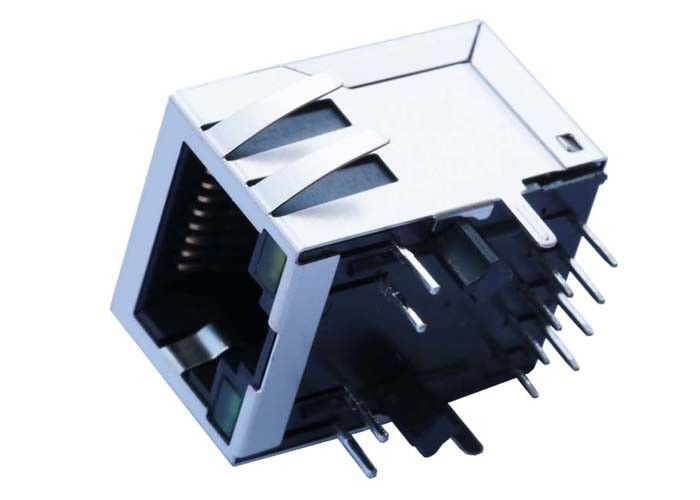

Large Image :  ARJM11A1-811-AB-CW2 / ARJM11A3-811-AB-EW2 5G Base-T LAN RJ45 Jack With Magnetics

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,REACH,RoHS
Model Number: ARJM11A1-811-AB-CW2 / ARJM11A3-811-AB-EW2

Payment & Shipping Terms:

Minimum Order Quantity: 500/1000
Price: Supportive&Discount
Packaging Details: 60PCS/Tray,20 Trays=37*30*30CM=1200PCS=11KG/Carton
Delivery Time: Stock or 4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Specification: ARJM11A3-811-AB-EW2 Ethernet: 5G Base-T LAN
Indicator: Green - Yellow Mounting: R/A Shield
Samples: Available Free

ARJM11A1-811-AB-CW2 / ARJM11A3-811-AB-EW2 5G Base-T LAN RJ45 Jack With Magnetics



Part Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 5G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.535" (13.59mm)
LED Color Green - Yellow
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Features Board Lock
Tab Direction Down
Contact Material -
Contact Finish Gold
Operating Temperature 0°C ~ 70°C
Contact Finish Thickness 6.00µin (0.152µm)



Single 5G BASE-TX Filtered Connector Integrated latch Down

LED Support Auto MDIX InLINE PCB

Available with LED
• Suitable CAT 5 & 6 cable and UTP
• Comply IEEE 802.3u
• LAN Magnetic with RJ45
• Suitable for RoHS compliant


FEATURE :
◎ RoHS Compliant
◎ Fully shielded magnetics protect data from internally generated digital noise
◎ Reduces the overall length of the signal path for improved common mode performance
◎ Implements full common mode termination scheme with used and unused twisted
pairs
◎ Meets IEEE802.3 Baseline Wander Compensation specification
◎ Integrates high voltage capacitor to chassis ground
◎ Supports all major transceivers with matched turns ration and complete integration of
specified termination
◎ Design for 100base-tx transmission over UTP-5 cable
◎ Storage TEMP. range:-40℃ to +85℃
◎ Primary OCL inductance: 350μH MIN. at 100KHz/0.1Vrms with 8mA DC bias
◎ With the LED lamp
