Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: ARJM21A1-A12-NN-CW2
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Designe PN#: |
ARJM21A1-A12-NN-CW2 |
Made In China: |
LPJxxxxxNL |
Family: |
Rj45 Network Port |
Interface: |
10/100Base-TX |
LED: |
Flexible |
Samples: |
Available |
Designe PN#: |
ARJM21A1-A12-NN-CW2 |
Made In China: |
LPJxxxxxNL |
Family: |
Rj45 Network Port |
Interface: |
10/100Base-TX |
LED: |
Flexible |
Samples: |
Available |

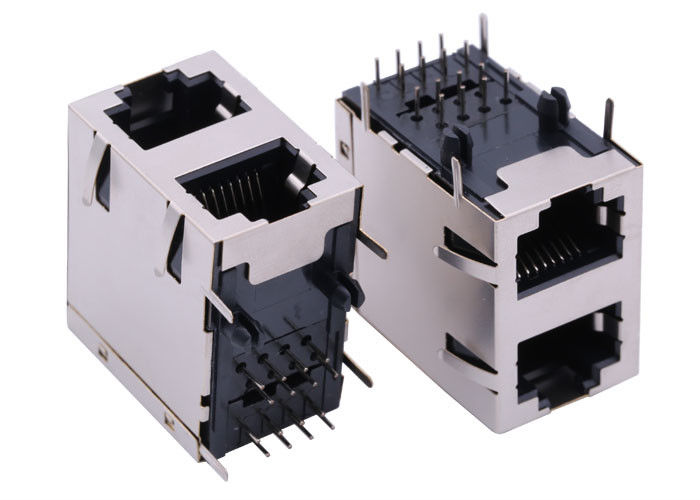

| 2X1 Port 8P8C RJ45 Magjack with 10/100 Base-T Integrate Magnetics ,Without LED,Tab Up/Down,RoHS | |
| LINK-PP Part Number | LPJxxxxNL |
| Abracon LLC Part Number |
ARJM21A1-A12-NN-CW2
|
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 4 |
| Diodes | NO DIODES |
| LED Option | without LEDS |
| Latch | TAB UP/TAB DOWN |
| Number of Ports | 2X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 1.003 |
| Package Height (mm) | 25.50 |
| Package Length (Inches) | 1.108 |
| Package Length (mm) | 28.14 |
| Package Width (Inches) | 0.676 |
| Package Width (mm) | 17.17 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 10/100 Base-T |
| Temperature | 0 TO + 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Application field
1) MEDICAL
Diagnostic, Surgical Equipment, Patient Monitoring, Patient Monitoring, Hand Held Devices, Surgical Generators, In-Home Dialysis
2) NETWORKING
Data Center Switching, Routers, Servers & Server I/O, Server Blades,100G Core Switches,NIC Cards, 3U Top Rack & End of Rack, 40G Firewall, Patch Panels & Wiring Closet
3)TELECOM/DATACOM
Set-Top Boxes, Home Hub, Cell Phones, Satellites, Bay Stations, PBX, Optical Networking, Hand Held Devices
3) CONSUMER
Digital Cameras, Video Recorders, GPS-Navigation, Portable Media Players, Game Controllers, Projectors, LCD Televisions, Hand Held Devices
4) SECURITY
Control Panels, Fire Alarm Zones, Hand Held Devices
Business partner
LINK-PP Is The Preferred Designer and Manufacturer of Intel, Intel MinnowBoard MAX Supported by LINK-PP Magnetic RJ45 PN#LPJG16314A4NL.
For any further information,Welcome to visit www.intel.com, you will find out our logo"LINK-PP" on MinnowBoard MAX .
Other Part Number
| ARJM11C7-811-AD-ER2-T |
| ARJM11D7-811-AD-ER2-T |
| ARJM11A1-811-NN-EW4 |
| ARJM11B1-811-NN-EW4 |
| ARJM11C7-811-NN-ER4-T |
| ARJM11D7-811-NN-ER4-T |
| ARJM11A1-811-KB-CW2 |
| ARJM11B1-811-KB-CW2 |
| ARJM11A1-811-JA-EW2 |
| ARJM11B1-811-JA-EW2 |
| ARJM11A3-811-JA-EW2 |
| ARJM11B3-811-JA-EW2 |
