Home > products > RJ45 Multi Port Jack > 2x1 Port 10/100M Stacked RJ45´s With Separated CT With LEDs ARJM21A1-A12-BA-CW2

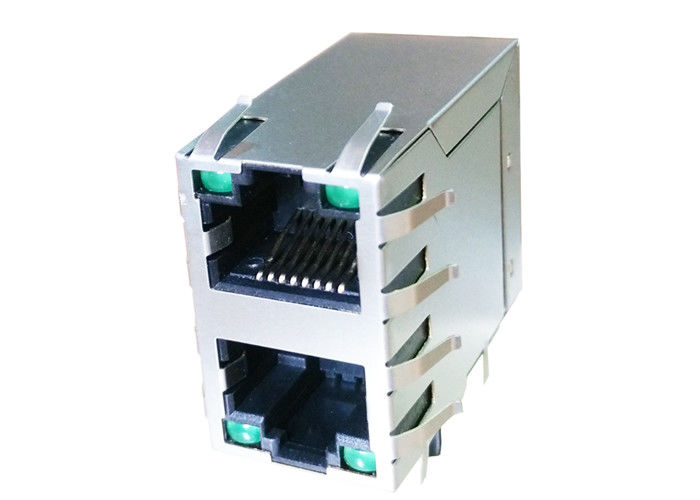

2x1 Port 10/100M Stacked RJ45´s With Separated CT With LEDs ARJM21A1-A12-BA-CW2

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: ARJM21A1-A12-BA-CW2

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/60K

Price: $0.11-$24

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price
Highlight:

modular jacks rj45

,

rj45 usb connector combo

Spec:
ARJM21A1-A12-BA-CW2
Shielded:
Copper Alloy
Application:
HUB, PC Card, Switch, Router Etc
Mounting:
Side Entry (Right Angle)
Port:
2X1 Port
File:
PDF/3D/ISG/Stp/Step/Datasheet
Spec:
ARJM21A1-A12-BA-CW2
Shielded:
Copper Alloy
Application:
HUB, PC Card, Switch, Router Etc
Mounting:
Side Entry (Right Angle)
Port:
2X1 Port
File:
PDF/3D/ISG/Stp/Step/Datasheet
2x1 Port 10/100M Stacked RJ45´s With Separated CT With LEDs ARJM21A1-A12-BA-CW2
2x1 Port 10/100M Stacked RJ45´s With Separated CT With LEDs ARJM21A1-A12-BA-CW2

Description:
2X1 Ethernet RJ45 Connector with 10/100 Base-T Integrated Magnetics, Yellow/Green LED,Tab Up/Tab Down,RoHS
LINK-PP Part Number LPJxxxxNL
Abracon LLC Part Number ARJM21A1-A12-BA-CW2
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"
Cores per Port 4
Diodes NO DIODES
LED Option Yellow/Green
Latch TAB UP/TAB DOWN
Number of Ports 2X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 1.004
Package Height (mm) 25.50
Package Length (Inches) 1.108
Package Length (mm) 28.14
Package Width (Inches) 0.676
Package Width (mm) 17.17
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10/100 Base-T
Temperature 0°C ~ 70°C
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
