Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: ARJM21A1-A12-BB-CW2
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Spec: |
ARJM21A1-A12-BB-CW2 |
Equivalent: |
LPJXXXXXNL |
Ethernet: |
2x1 10/100Base-T |
Files: |
3D STEP IGS PDF Datasheet |
LED: |
Yellow - Yellow |
Sample: |
Free |
Spec: |
ARJM21A1-A12-BB-CW2 |
Equivalent: |
LPJXXXXXNL |
Ethernet: |
2x1 10/100Base-T |
Files: |
3D STEP IGS PDF Datasheet |
LED: |
Yellow - Yellow |
Sample: |
Free |

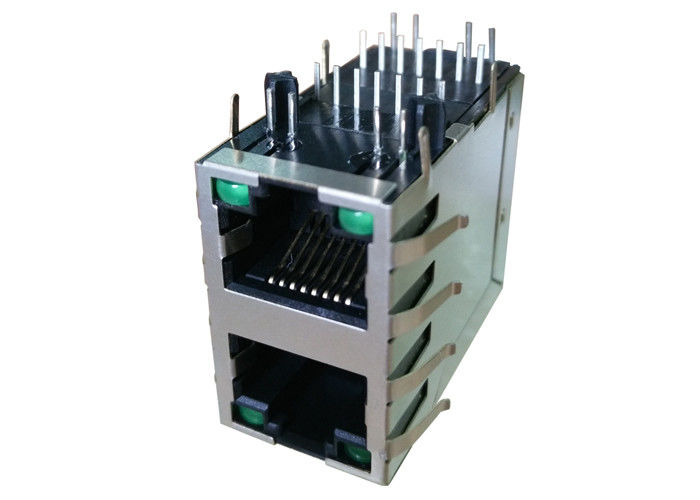

| 2X1 Ethernet RJ45 Connector with 10/100 Base-T Integrated Magnetics, Yellow/Yellow LED,Tab Up/Tab Down,RoHS | |
| LINK-PP Part Number | LPJxxxxNL |
| Abracon LLC Part Number | ARJM21A1-A12-BB-CW2 |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u" |
| Cores per Port | 4 |
| Diodes | NO DIODES |
| LED Option | Yellow/Yellow |
| Latch | TAB UP/TAB DOWN |
| Number of Ports | 2X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 1.004 |
| Package Height (mm) | 25.50 |
| Package Length (Inches) | 1.108 |
| Package Length (mm) | 28.14 |
| Package Width (Inches) | 0.676 |
| Package Width (mm) | 17.17 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 10/100 Base-T |
| Temperature | 0°C ~ 70°C |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Our Customers :
• Texas Instruments
LINK-PP is the preferred supplier of TI.
Welcome to visit the TI website: http://www.ti.com/tool/beaglebk#0
You will look at our logo "LINK-PP" on BeagleBone Board.
• Intel
LINK-PP Is the preferred supplier of Intel.
LINK-PP LPJG16314A4NL is used in MinnowBoard max of Intel.
• Cisco
LINK-PP Is the preferred supplier of Cisco.
LINK-PP LPJ0011DNL is used in gate way of Cisco. Jabil is the OEM for this project.
• Siemens
LINK-PP Is the preferred supplier of Siemens.
LINK-PP LP6096ANL is used in medical equipment of Siemens.
Flextronics is the OEM for this project.
• Samsung
LINK-PP is the preferred supplier of Samsung.
LINK-PP LPJ0011BBNL is used in smart box of Samsung.
Jabil is the OEM for this project.
FAQ
Q: How long Delivery time ?
A: RJ45/RJ11 Series: 12~20 days
SFP Series: 25~30 Days USB Series: 7~15 days
Connector: 7~15 days
Q: How can I get quotation?
A:It is helpful for us to recommend the right item if we know your detail requirements
(number of port, shielded or non-shielded, led or dual leds, with or without transformer etc).
Drawing and quotation will be sent accordingly. Of course, it is best if we have your drawing.
Q: Can I have samples?
A: Samples are available for evaluation.
Q: Is OEM & ODM available?
A: OEM&ODM are welcome.
