ARJM11C7-811-NN-CW2 5G Base-T RJ45 Female Modular Jack With EMI Finger

China ARJM11C7-811-NN-CW2 5G Base-T RJ45 Female Modular Jack With EMI Finger supplier
ARJM11C7-811-NN-CW2 5G Base-T RJ45 Female Modular Jack With EMI Finger supplier ARJM11C7-811-NN-CW2 5G Base-T RJ45 Female Modular Jack With EMI Finger supplier

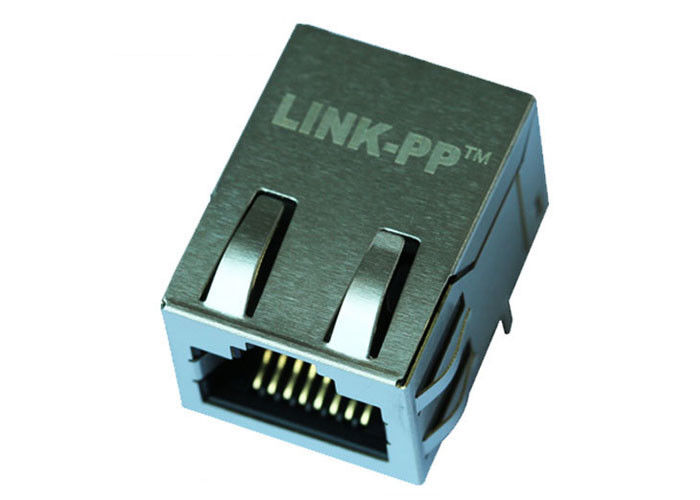

Large Image :  ARJM11C7-811-NN-CW2 5G Base-T RJ45 Female Modular Jack With EMI Finger

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: ARJM11C7-811-NN-CW2

Payment & Shipping Terms:

Minimum Order Quantity: 200/500//1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: 2-3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 4200K-PCS/Month
Contact Now
Detailed Product Description
Specifications: ARJM11C7-811-NN-CW2 P/N: LPJxxxxxNL
Ethernet: 1x 5G Base Sample: Free
Shielding: Shielded, EMI Finger Contact Finish: Gold

ARJM11C7-811-NN-CW2 5G Base-T RJ45 Female Modular Jack With EMI Finger



Shielded 1x1 Port 8P8C RJ45 Connector with 5G Base-T Integrated Magnetics, Without LED,Tab UP,RoHS
LINK-PP Part Number LPJGxxxxNL
Abracon LLC Part Number ARJM11C7-811-NN-CW2
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option without LEDs
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.543
Package Height (mm) 13.80
Package Length (Inches) 0.839
Package Length (mm) 21.30
Package Width (Inches) 0.626
Package Width (mm) 15.90
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs With
Speed 5G Base-T, AutoMDIX
Temperature 0°C ~ 70°C
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



ARJM11C7-811-NN-CW2 5G Base-T RJ45 Female Modular Jack With EMI Finger
1. Product Type Features:
  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)
2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
  1) Shielded = Yes
4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder
5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length
6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
  1) Connector Style = Jack
8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,
      Wave solder capable to 260°C, Wave solder capable to 265°C
  3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem



Other Part Number



ARJM11A3-811-AB-EW4
ARJM11A3-811-AD-EW4
ARJM11B3-811-AB-EW4
ARJM11B3-811-AD-EW4
ARJM11C7-811-AB-ER4-T
ARJM11C7-811-AD-ER4-T
ARJM11D7-811-AB-ER4-T
ARJM11D7-811-AD-ER4-T
ARJM11A1-811-NN-ER2-T
ARJM11B1-811-NN-ER2-T
ARJM21A1-A12-AA-CW2
ARJM21A1-A12-AB-CW2
ARJM21A1-A12-BA-CW2
ARJM21A1-A12-BB-CW2
ARJM11B1-811-JA-EW4
ARJM11A1-811-KB-EW4
