Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: ARJM11D7-811-KB-ER4-T
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.5-$3.5
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Part Number: |
ARJM11D7-811-KB-ER4-T |
Samples: |
Active&Available |
Category: |
RJ45 Modular Jack |
Interface: |
5G Ethernet |
Made In China: |
LPJxxxxNL |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Part Number: |
ARJM11D7-811-KB-ER4-T |
Samples: |
Active&Available |
Category: |
RJ45 Modular Jack |
Interface: |
5G Ethernet |
Made In China: |
LPJxxxxNL |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |

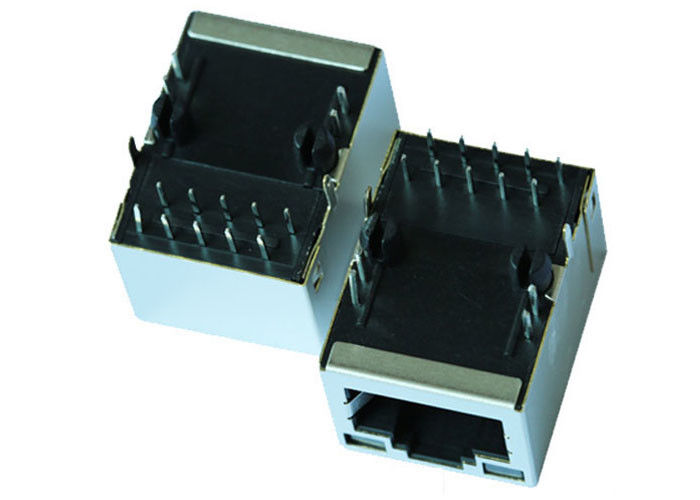

| 1x1 Port RJ45 Jack with 5G Base-T Integrated Magnetics, Green&Orange/Yellow LED,Tab UP,RoHS | |
| LINK-PP Part Number | LPJGxxxxNL |
| Abracon LLC Part Number | ARJM11D7-811-KB-ER4-T |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 8 |
| Diodes | NO DIODES |
| LED Option | Green&Orange/Yellow LEDs |
| Latch | TAB UP |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.543 |
| Package Height (mm) | 13.80 |
| Package Length (Inches) | 0.839 |
| Package Length (mm) | 21.30 |
| Package Width (Inches) | 0.626 |
| Package Width (mm) | 15.90 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | Without |
| Speed | 5G Base-T, AutoMDIX |
| Temperature | -40°C ~ 85°C |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Advantage:
• LINK-PP Established in 1997
• 100% Tested (Not Just Batch Tested)
• LINK-PP Is OEM Of TE (Tyco) For 9 Years
• Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
• LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
• Company Certifications:ISO 9001:2008, ISO 14001:2008, KC
• Product Certifications:ROHS, CE, FCC, UL, REACH, CQC,etc
Competitive Price And Service
• More Competitive Price Than Pulse Tyco Halo And Amphenol
• Free Samples Are Available
• Provide New Design For Customer Requirements
• 90% Off Shipping Cost By DHL UPS DEDEX Or TNT
• Delivery Time:2-3 Weeks After Orders
• Diverse payment methods:T/T, Paypal, L/C, Western Union
Successful Customer:
• Texas Instruments
LINK-PP is the preferred supplier of TI.
Welcome to visit the TI website: http://www.ti.com/tool/beaglebk#0
You will look at our logo "LINK-PP" on BeagleBone Board.
• Intel
LINK-PP Is the preferred supplier of Intel.
LINK-PP LPJG16314A4NL is used in MinnowBoard max of Intel.
• Cisco
LINK-PP Is the preferred supplier of Cisco.
LINK-PP LPJ0011DNL is used in gate way of Cisco. Jabil is the OEM for this project.
• Siemens
LINK-PP Is the preferred supplier of Siemens.
LINK-PP LP6096ANL is used in medical equipment of Siemens.
Flextronics is the OEM for this project.
• Samsung
LINK-PP is the preferred supplier of Samsung.
LINK-PP LPJ0011BBNL is used in smart box of Samsung.
Jabil is the OEM for this project.
Other Part Number
| ARJM11C7-811-AB-ER4-T |
| ARJM11C7-811-AD-ER4-T |
| ARJM11D7-811-AB-ER4-T |
| ARJM11D7-811-AD-ER4-T |
| ARJM11A1-811-NN-ER2-T |
| ARJM11B1-811-NN-ER2-T |
| ARJM21A1-A12-AA-CW2 |
| ARJM21A1-A12-AB-CW2 |
| ARJM21A1-A12-BA-CW2 |
| ARJM21A1-A12-BB-CW2 |
| ARJM11B1-811-JA-EW4 |
| ARJM11A1-811-KB-EW4 |
| ARJM11B1-811-KB-EW4 |
| ARJM11A3-811-JA-EW4 |
| ARJM11B3-811-JA-EW4 |
| ARJM11A3-811-KB-EW4 |
| ARJM11B3-811-KB-EW4 |
| ARJM11C7-811-NN-CW2 |
| ARJM11D7-811-NN-CW2 |
