Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: ARJM21A1-A12-NN-EW2
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Spec: |
ARJM21A1-A12-NN-EW2 |
Analogue PN: |
LPJXXXXNL |
Family: |
Rj45 With Transformer Inside |
I/O: |
2x1 10/100Base-T |
Files: |
3D STEP IGS PDF Datasheet |
Termination: |
Solder |
Spec: |
ARJM21A1-A12-NN-EW2 |
Analogue PN: |
LPJXXXXNL |
Family: |
Rj45 With Transformer Inside |
I/O: |
2x1 10/100Base-T |
Files: |
3D STEP IGS PDF Datasheet |
Termination: |
Solder |

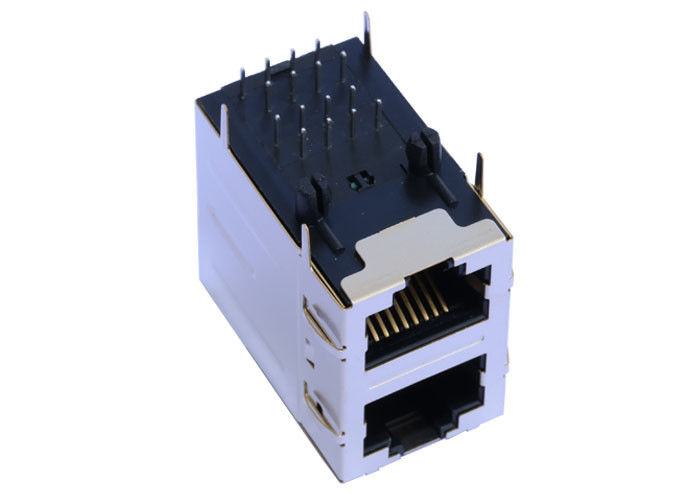

| 2X1 Port 8P8C RJ45 Magjack with 10/100 Base-T Integrate Magnetics ,Without LED,Tab Up/Down,RoHS | |
| LINK-PP Part Number | LPJxxxxNL |
| Abracon LLC Part Number |
ARJM21A1-A12-NN-EW2
|
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 4 |
| Diodes | NO DIODES |
| LED Option | without LEDS |
| Latch | TAB UP/TAB DOWN |
| Number of Ports | 2X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 1.003 |
| Package Height (mm) | 25.50 |
| Package Length (Inches) | 1.108 |
| Package Length (mm) | 28.14 |
| Package Width (Inches) | 0.676 |
| Package Width (mm) | 17.17 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 10/100 Base-T |
| Temperature | -40°C ~ 85°C |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
application:
PCMCIA Networking Cards
Vacuum Fluorescent Displays
Computer Printers and Plotters
CompactPCI and PXI Products
