ARJM11B1-811-JA-ER4-T / ARJM11B3-811-JA-ER4-T RJ45 Modular Connectors With 5G

Good quality Magnetic RJ45 Jack for sales
Good quality Magnetic RJ45 Jack for sales
WOW , 100% Tested ,Zero Defective

—— TI

LINK-PP is Our Best Supplier in China

—— Intel

Thanks a Lot For Supplying Excellent RJ45 And Transformer ,LINK-PP Deserve the Consideration Worldwidely

—— Cisco

LINK-PP is Flex type A Vendor For All RJ45 Connector and Transformer

—— Flextronics

I'm Online Chat Now

ARJM11B1-811-JA-ER4-T / ARJM11B3-811-JA-ER4-T RJ45 Modular Connectors With 5G

China ARJM11B1-811-JA-ER4-T / ARJM11B3-811-JA-ER4-T RJ45 Modular Connectors With 5G supplier
ARJM11B1-811-JA-ER4-T / ARJM11B3-811-JA-ER4-T RJ45 Modular Connectors With 5G supplier ARJM11B1-811-JA-ER4-T / ARJM11B3-811-JA-ER4-T RJ45 Modular Connectors With 5G supplier

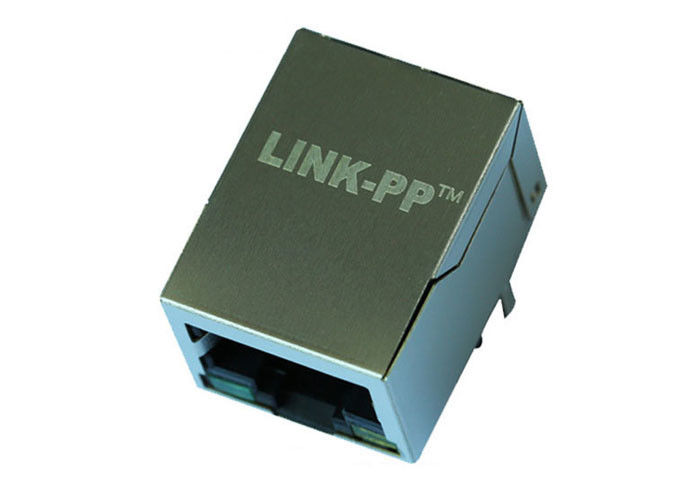

Large Image :  ARJM11B1-811-JA-ER4-T / ARJM11B3-811-JA-ER4-T RJ45 Modular Connectors With 5G

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH
Model Number: ARJM11B1-811-JA-ER4-T / ARJM11B3-811-JA-ER4-T

Payment & Shipping Terms:

Minimum Order Quantity: 200/500//1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 4-5 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 4800K-PCS/Month
Contact Now
Detailed Product Description
Specification: ARJM11B3-811-JA-ER4-T Base: 1x5GMbps
Indicator: Green&Yellow/Green Mounting: R/A Shield
Samples: Available Free

ARJM11B1-811-JA-ER4-T / ARJM11B3-811-JA-ER4-T RJ45 Modular Connectors With 5G



1x1 Port 8P8C RJ45 Jack Connector with 5G Base-T Integrated Magnetics, Green&Yellow/Green LED,Tab Down,RoHS
LINK-PP Part Number LPJGxxxxNL
Abracon LLC Part Number ARJM11B1-811-JA-ER4-T / ARJM11B3-811-JA-ER4-T
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option Green&Yellow/Green LEDs
Latch TAB Down
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.535
Package Height (mm) 13.60
Package Length (Inches) 0.839
Package Length (mm) 21.30
Package Width (Inches) 0.626
Package Width (mm) 15.90
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs Without
Speed 5G Base-T
Temperature -40°C ~ 85°C
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Why Choose Us

Quick Response---we are commited to deliver our quick response within one hour in working time and 24 hours in holiday.

Over 20 Years’ Experience---we’ve been in this field since 1997.and designed and produced wide range of products with our professional R&D team and Sales.

Competitive Price---we continuously strive to find ways of reducing our production costs, and passing the savings to our valued customers.

Quality Assurance---we are commited to provide high quality products and professional service. Which comply with CE RoHS.

Fast Delivery---kinds of shipment ways for your selection at lowest cost,3-5 days for samples.7-10 days for bulk purchase.

Free Sample---we offer you free samples to test the quality and dimensions before bulk purchase. We help you to controlyour risk.

Professional Certification---ISO 9001:2008,ISO 14001:2008, UL CE FCC Reach Certification, RoHS Compliance


Applications For Terminal User
Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...

Main Customer
Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......

EMS Application
Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly



Main Customer
Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......

J3011G21DNLT SMT 1x1 Port RJ45 Magjack Connector With 10/100M

J3011G21DNLT SMT 1x1 Port RJ45 Magjack Connector With 10/100M

EMS ApplicationBuilt-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly



Other Part Number

ARJM11B3-811-JJ-ER2-T
ARJM11A3-811-KK-ER2-T
ARJM11B3-811-KK-ER2-T
ARJM11A1-811-AB-ER4-T
ARJM11A1-811-AD-ER4-T
ARJM11B1-811-AB-ER4-T
ARJM11B1-811-AD-ER4-T
ARJM11A3-811-AB-ER4-T
ARJM11A3-811-AD-ER4-T
ARJM11B3-811-AB-ER4-T
ARJM11B3-811-AD-ER4-T
ARJM11C7-811-AB-CW2
ARJM11D7-811-AB-CW2
ARJM11A1-811-JJ-ER4-T
ARJM11A3-811-JJ-ER4-T
