Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: ARJM11B1-811-JJ-ER4-T / ARJM11B3-811-JJ-ER4-T
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.5-$3.5
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Part Number: |
ARJM11B3-811-JJ-ER4-T |
Category: |
RJ45 Modular Jack |
Interface: |
5G AutoMDIX |
TURNS RATIO: |
'1CT:1CT & 1CT:1CT' |
Made In China: |
LPJXXXXXNL |
Part Number: |
ARJM11B3-811-JJ-ER4-T |
Category: |
RJ45 Modular Jack |
Interface: |
5G AutoMDIX |
TURNS RATIO: |
'1CT:1CT & 1CT:1CT' |
Made In China: |
LPJXXXXXNL |

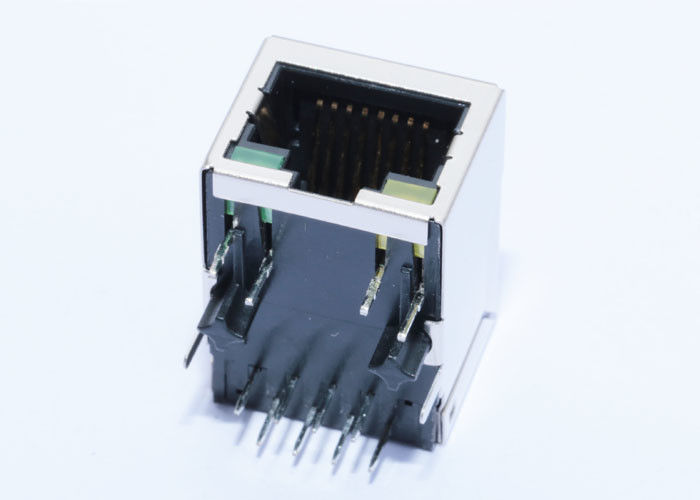

| 1x1 Port 8P8C RJ45 Jack Connector with 5G Base-T Integrated Magnetics, Green&Yellow/Green&Yellow LED,Tab Down,RoHS | |
| LINK-PP Part Number | LPJGxxxxNL |
| Abracon LLC Part Number | ARJM11B1-811-JJ-ER4-T / ARJM11B3-811-JJ-ER4-T |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 8 |
| Diodes | NO DIODES |
| LED Option | Green&Yellow/Green&Yellow LEDs |
| Latch | TAB Down |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.535 |
| Package Height (mm) | 13.60 |
| Package Length (Inches) | 0.839 |
| Package Length (mm) | 21.30 |
| Package Width (Inches) | 0.626 |
| Package Width (mm) | 15.90 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | Without |
| Speed | 5G Base-T |
| Temperature | -40°C ~ 85°C |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Reduces the number of components to be placed on the board
Frees up board space and offers signal protection
Noise reduction in the system
Improved reliability and optimal system performance
Benefits of having shorter signal paths and the reliability gains from systems containing fewer components
Helps manufacturers reach their goals of cost reduction
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•LINK-PP Is OEM Of TE (Tyco) For 9 Years
•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
•Quality Guarantee:6 Years
Other Part Number
| ARJM11B3-811-KK-ER2-T |
| ARJM11A1-811-AB-ER4-T |
| ARJM11A1-811-AD-ER4-T |
| ARJM11B1-811-AB-ER4-T |
| ARJM11B1-811-AD-ER4-T |
| ARJM11A3-811-AB-ER4-T |
| ARJM11A3-811-AD-ER4-T |
| ARJM11B3-811-AB-ER4-T |
| ARJM11B3-811-AD-ER4-T |
| ARJM11C7-811-AB-CW2 |
| ARJM11D7-811-AB-CW2 |
| ARJM11A1-811-JJ-ER4-T |
| ARJM11A3-811-JJ-ER4-T |
| ARJM11B1-811-JA-ER4-T |
| ARJM11B3-811-JA-ER4-T |
