ARJM11A1-811-KK-ER4-T / ARJM11A3-811-KK-ER4-T 5G Base-T RJ45 Female Modular Jack

China ARJM11A1-811-KK-ER4-T / ARJM11A3-811-KK-ER4-T 5G Base-T RJ45 Female Modular Jack supplier
ARJM11A1-811-KK-ER4-T / ARJM11A3-811-KK-ER4-T 5G Base-T RJ45 Female Modular Jack supplier ARJM11A1-811-KK-ER4-T / ARJM11A3-811-KK-ER4-T 5G Base-T RJ45 Female Modular Jack supplier

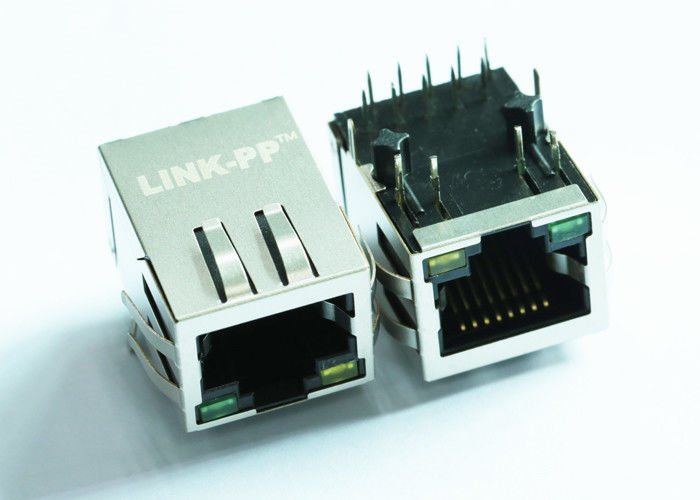

Large Image :  ARJM11A1-811-KK-ER4-T / ARJM11A3-811-KK-ER4-T 5G Base-T RJ45 Female Modular Jack

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: ARJM11A1-811-KK-ER4-T / ARJM11A3-811-KK-ER4-T

Payment & Shipping Terms:

Minimum Order Quantity: 200/500//1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: 2-3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 4200K-PCS/Month
Contact Now
Detailed Product Description
PN.1: ARJM11A1-811-KK-ER4-T PN.2: ARJM11A3-811-KK-ER4-T
Schematics: 1x 5G Base-T Sample: Free
Tab Direction: Down ENI Finger: With

ARJM11A1-811-KK-ER4-T / ARJM11A3-811-KK-ER4-T 5G Base-T RJ45 Female Modular Jack



1x1 Port 8P8C RJ45 Jack Connector with 5G Base-T Integrated Magnetics, Green&Orange/Green&Orange LED,Tab Down,RoHS
LINK-PP Part Number LPJGxxxxNL
Abracon LLC Part Number ARJM11A1-811-KK-ER4-T / ARJM11A3-811-KK-ER4-T
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option Green&Orange/Green&Orange LEDs
Latch TAB Down
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.535
Package Height (mm) 13.60
Package Length (Inches) 0.839
Package Length (mm) 21.30
Package Width (Inches) 0.626
Package Width (mm) 15.90
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs With
Speed 5G Base-T
Temperature -40°C ~ 85°C
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT


Our Services
Customer Satisfaction:Please don't hesitate to contact us if you have any questions or concerns before or after your purchase. We are committed to your 100% satisfaction.

Payment Terms:There are many payment methods available such as TT/LC/DP/DA/Paypal/Western Union/MoneyGram

Return Policy:If you want to exchange your items received ,you must contact us within 5 days of the receipt of your order .And you should pay addtional shipping fees incurred and items returned should be kept in their original status.

Feedback:Since your feedback is very important to our busines's development ,we sincerely invite you to leave positive feedback for us if you are satisfied with our products and service ,it will just take you one minute .Thanks a lot !

ARJM11A1-811-KK-ER4-T / ARJM11A3-811-KK-ER4-T 5G Base-T RJ45 Female Modular Jack
Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem



FAQ

1.When will you ship the goods out if i send payment now?
Usually ,We will delivery out them 2-3 Week later after payment recevied.if the PO is very big ,we need more time to produce .
2.Is your goods tested before shipping?
Yes,we test every item at least 3 times before shipping,please do not worry about the quality problems,you can buy with confidence.
3.I am new buyer ,how can i buy from you?
You tell us what you need ,we send you offer,if you think the offer is good,our sales send you company invoice including all details such as payment terms ect ,then we ship to you



Other Part Number

ARJM11B1-811-AB-ER4-T
ARJM11B1-811-AD-ER4-T
ARJM11A3-811-AB-ER4-T
ARJM11A3-811-AD-ER4-T
ARJM11B3-811-AB-ER4-T
ARJM11B3-811-AD-ER4-T
ARJM11C7-811-AB-CW2
ARJM11D7-811-AB-CW2
ARJM11A1-811-JJ-ER4-T
ARJM11A3-811-JJ-ER4-T
ARJM11B1-811-JA-ER4-T
ARJM11B3-811-JA-ER4-T
ARJM11B1-811-JJ-ER4-T
ARJM11B3-811-JJ-ER4-T
ARJM11A1-811-KB-ER4-T
ARJM11A3-811-KB-ER4-T
