Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: ARJM11B1-811-KK-ER4-T / ARJM11B3-811-KK-ER4-T
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.5-$3.5
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
PN.1: |
ARJM11B1-811-KK-ER4-T |
PN.2: |
ARJM11B3-811-KK-ER4-T |
Original Munafactuer: |
LINK-PP |
Application: |
5G Base-T |
Termination: |
Solder |
LEDs: |
Green&Orange/Green&Orange |
PN.1: |
ARJM11B1-811-KK-ER4-T |
PN.2: |
ARJM11B3-811-KK-ER4-T |
Original Munafactuer: |
LINK-PP |
Application: |
5G Base-T |
Termination: |
Solder |
LEDs: |
Green&Orange/Green&Orange |

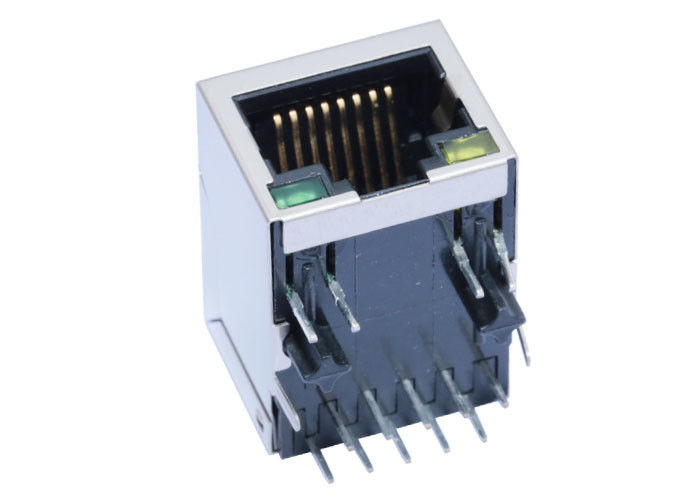

| 1x1 Port 8P8C RJ45 Jack Connector with 5G Base-T Integrated Magnetics, Green&Orange/Green&Orange LED,Tab Down,RoHS | |
| LINK-PP Part Number | LPJGxxxxNL |
| Abracon LLC Part Number | ARJM11B1-811-KK-ER4-T / ARJM11B3-811-KK-ER4-T |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 8 |
| Diodes | NO DIODES |
| LED Option | Green&Orange/Green&Orange LEDs |
| Latch | TAB Down |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.535 |
| Package Height (mm) | 13.60 |
| Package Length (Inches) | 0.839 |
| Package Length (mm) | 21.30 |
| Package Width (Inches) | 0.626 |
| Package Width (mm) | 15.90 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | Without |
| Speed | 5G Base-T |
| Temperature | -40°C ~ 85°C |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Applications For Terminal User
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
Competitive Advantage
19 years production experience,
2600 staff,
100% test
Flexible delivery time
Main Customer
Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......
EMS Application
Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
FAQ
Q:Are you a factory or a trading company?
A:We are factory direct sales, have quality assurance, and can also meet your customization requirements.
Q:Can I get a free sample?
A:Of course, you can get 3-5 samples, and you need to pay for the shipping cost of the sample.
Q:How long is your delivery?
A:5-7 days in case of stock, normal is 2-3 weeks delivery
Q:What are your payment terms?
A:TT/LC/DP/DA/Paypal/Western Union/MoneyGram
Other Part Number
| ARJM11C7-811-AB-CW2 |
| ARJM11D7-811-AB-CW2 |
| ARJM11A1-811-JJ-ER4-T |
| ARJM11A3-811-JJ-ER4-T |
| ARJM11B1-811-JA-ER4-T |
| ARJM11B3-811-JA-ER4-T |
| ARJM11B1-811-JJ-ER4-T |
| ARJM11B3-811-JJ-ER4-T |
| ARJM11A1-811-KB-ER4-T |
| ARJM11A3-811-KB-ER4-T |
| ARJM11A1-811-KK-ER4-T |
| ARJM11A3-811-KK-ER4-T |
| ARJM11B1-811-KB-ER4-T |
| ARJM11B3-811-KB-ER4-T |
