ARJM11A1-811-JA-ER4-T / ARJM11A3-811-JA-ER4-T One Port RJ45 Modular Jack 5G Base-T

Good quality Magnetic RJ45 Jack for sales
Good quality Magnetic RJ45 Jack for sales
WOW , 100% Tested ,Zero Defective

—— TI

LINK-PP is Our Best Supplier in China

—— Intel

Thanks a Lot For Supplying Excellent RJ45 And Transformer ,LINK-PP Deserve the Consideration Worldwidely

—— Cisco

LINK-PP is Flex type A Vendor For All RJ45 Connector and Transformer

—— Flextronics

I'm Online Chat Now

ARJM11A1-811-JA-ER4-T / ARJM11A3-811-JA-ER4-T One Port RJ45 Modular Jack 5G Base-T

China ARJM11A1-811-JA-ER4-T / ARJM11A3-811-JA-ER4-T One Port RJ45 Modular Jack 5G Base-T supplier
ARJM11A1-811-JA-ER4-T / ARJM11A3-811-JA-ER4-T One Port RJ45 Modular Jack 5G Base-T supplier ARJM11A1-811-JA-ER4-T / ARJM11A3-811-JA-ER4-T One Port RJ45 Modular Jack 5G Base-T supplier

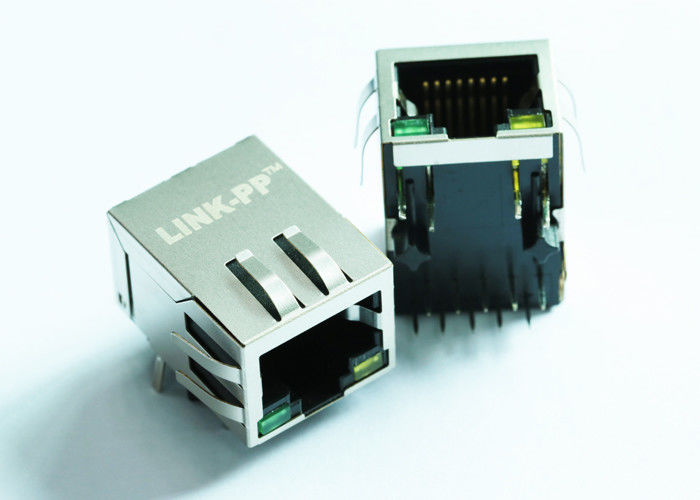

Large Image :  ARJM11A1-811-JA-ER4-T / ARJM11A3-811-JA-ER4-T One Port RJ45 Modular Jack 5G Base-T

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: ARJM11A1-811-JA-ER4-T / ARJM11A3-811-JA-ER4-T

Payment & Shipping Terms:

Minimum Order Quantity: 200/500//1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,Paypal,West Union
Supply Ability: 4200K-PCS/Month
Contact Now
Detailed Product Description
PN.1: ARJM11A1-811-JA-ER4-T PN.2: ARJM11A3-811-JA-ER4-T
Original Munafactuer: LINK-PP Application: 5G Base-T
Termination: Solder LEDs: Green&Yellow/Green

ARJM11A1-811-JA-ER4-T / ARJM11A3-811-JA-ER4-T One Port RJ45 Modular Jack 5G Base-T



1x1 Port 8P8C RJ45 Jack Connector with 5G Base-T Integrated Magnetics, Green&Yellow/Green LED,Tab Down,RoHS
LINK-PP Part Number LPJGxxxxNL
Abracon LLC Part Number ARJM11A1-811-JA-ER4-T / ARJM11A3-811-JA-ER4-T
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option Green&Yellow/Green LEDs
Latch TAB Down
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.535
Package Height (mm) 13.60
Package Length (Inches) 0.839
Package Length (mm) 21.30
Package Width (Inches) 0.626
Package Width (mm) 15.90
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs With
Speed 5G Base-T
Temperature -40°C ~ 85°C
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



ARJM11A1-811-JA-ER4-T / ARJM11A3-811-JA-ER4-T One Port RJ45 Modular Jack 5G Base-T

Applications For Terminal User

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...



Competitive Advantage

18 years production experience,

2600 staff,

100% test

Flexible delivery time



Main Customer

Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......



EMS Application

Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly



Other Part Number



ARJM26A1-805-NN-EW2
ARJM26A1-805-AA-CW2
ARJM26A1-805-BA-CW2
ARJM26A1-805-BB-CW2
ARJM26A1-811-NN-CW2
ARJM26A1-805-AA-EW2
ARJM26A1-805-AB-EW2
ARJM26A1-805-BA-EW2
ARJM26A1-805-BB-EW2
ARJM26A1-811-AA-CW2
ARJM26A1-811-AB-CW2
ARJM26A1-811-BA-CW2
ARJM26A1-811-BB-CW2
ARJM26A1-811-AA-EW2
ARJM26A1-811-AB-EW2
ARJM26A1-811-BA-EW2
ARJM26A1-811-BB-CW2
ARJM26A1-811-AA-EW2
ARJM26A1-811-AB-EW2
ARJM26A1-811-BA-EW2
