Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: ARJM26A1-811-BA-CW2
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.5-$3.5
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Part No: |
ARJM26A1-811-BA-CW2 |
Specification: |
LPJxxxxxNL |
Ethernet: |
Cat5/5e |
Mounting: |
Thru-hole |
Termination: |
Solder |
Samples: |
Available |
Part No: |
ARJM26A1-811-BA-CW2 |
Specification: |
LPJxxxxxNL |
Ethernet: |
Cat5/5e |
Mounting: |
Thru-hole |
Termination: |
Solder |
Samples: |
Available |

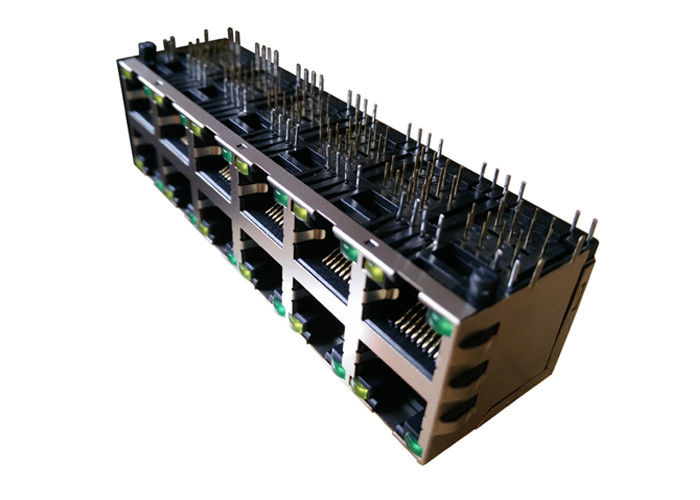

| 2X6 Port 8P8C RJ45 Female Connector with 5G Base-T Transformer , Yellow/Green LED,Tab Up/Down,RoHS | |
| LINK-PP Part Number | LPJGxxxxNL |
| Abracon LLC Part Number |
ARJM26A1-811-BA-CW2
|
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 8 |
| Diodes | NO DIODES |
| LED Option | Yellow/Green LEDS |
| Latch | TAB UP/TAB DOWN |
| Number of Ports | 2X6 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 1.004 |
| Package Height (mm) | 25.50 |
| Package Length (Inches) | 1.108 |
| Package Length (mm) | 28.14 |
| Package Width (Inches) | 3.426 |
| Package Width (mm) | 87.02 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 5G Base-T |
| Temperature | 0°C ~ 70°C |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Application Range
• Audio / Video product:MP3, MP4, DVD, stereo system
• Digital devices: digital camera, digital video
• Remote control: Vehicle, rolling door, Home security products
• Communication products: mobiles, car telephone, telephone, building equipment, PDA etc.
• Household Appliances: TV, microwave oven, electric cooker, electric hair drier, electronic scale, Body Fat &Water Scale, Kitchen Scale.
• Security Products: Videophone, Monitor etc.
• Toy: electronic toy etc.
• Computer products: Camera, recording pen etc.
• Fitness equipment: running machine, massage chair, timer etc.
• Medical Equipment: sphygmomanometer, thermometer, the hospital call system and other similar products.
Applications For Terminal User
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
Competitive Advantage
18 years production experience,
2600 staff,
100% test
Flexible delivery time
Main Customer
Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......
EMS Application
Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
