Home > products > Magnetic RJ45 Jack > ARJM24A1-811-BB-EW2 Equivalent Stacked 2x4 RJ45 Connector 8 Ports 5G Base - T

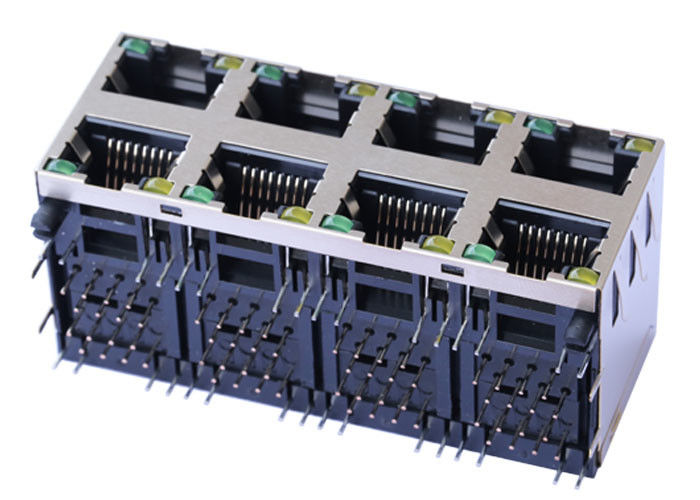

ARJM24A1-811-BB-EW2 Equivalent Stacked 2x4 RJ45 Connector 8 Ports 5G Base - T

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: ARJM24A1-811-BB-EW2

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.5-$3.5

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price
Highlight:

rj45 magnetic jack

,

shielded rj45 plugs

Item No:
ARJM24A1-811-BB-EW2
Conn:
Rj45 Female
Port:
2x4
Application:
HUB, PC Card, Switch, Router Etc
PCB Mounting Orientation:
Through Hole
Cross Rf:
LPJXXXXXNL
Item No:
ARJM24A1-811-BB-EW2
Conn:
Rj45 Female
Port:
2x4
Application:
HUB, PC Card, Switch, Router Etc
PCB Mounting Orientation:
Through Hole
Cross Rf:
LPJXXXXXNL
ARJM24A1-811-BB-EW2 Equivalent Stacked 2x4 RJ45 Connector 8 Ports 5G Base - T
ARJM24A1-811-BB-EW2 Equivalent Stacked 2x4 RJ45 Connector 8 Ports 5G Base - T

2X4 Port 8P8C RJ45 Female Connector with 5G Base-T Transformer, Yellow/Yellow LED,Tab Up/Down,RoHS
LINK-PP Part Number LPJxxxxNL
Abracon LLC Part Number
ARJM24A1-811-BB-EW2
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option Yellow/Yellow LEDS
Latch TAB UP/TAB DOWN
Number of Ports 2X4
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 1.004
Package Height (mm) 25.50
Package Length (Inches) 1.108
Package Length (mm) 28.14
Package Width (Inches) 2.326
Package Width (mm) 59.08
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 5G Base-T
Temperature -40°C ~ 85°C
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers



100% Guarantee Qualtiy

• Manufactured Under Strict Controls.

• 100% Tested (Not Just Batch Tested)

• LINK-PP Is OEM Of TE (Tyco) For 9 Years

• Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

• LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

• Quality Guarantee:6 Years



546-844-19 Magnetic RJ45 1000 Base - T Jack Female Connector LPJK0071CNL



Competitive Price And Service

• More Competitive Price Than Pulse Tyco Halo And Amphenol

• Free Samples Are Available

• Provide New Design For Customer Requirements

• 90% Off Shipping Cost By DHL UPS DEDEX Or TNT

• Delivery Time:2-3 Weeks After Orders



Professional Certification

• ISO 9001:2008

• UL Certification

• Reach Cetitifaction

• RoHS Compliance

• Active Environmental Policy



LINK-PP Corporate Policy

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services

• The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

Through Continuous Improvements In Quality, Delivery And Service



RJ45 Connector Definition

     RJ45 is usually defined by IEC (60) 603-7, using 8 positions (8-pin) modular jacks or plugs defined by international connector standards, so RJ45 interface is also known as 8j crystal head or crystal. Head, crystal head is male.

The RJ45 network interface is widely used in the connection between network devices (called Category 5 or twisted pair) between LAN devices and ADSL broadband Internet users.

     And RJ45 socket, RJ45 connector, RJ45 network interface, RJ45 female, network connector. That is, the company's products refer to the female base in the RJ45 connector, mainly used in Ethernet network cards, routers, switches, set-top boxes, security cameras and other equipment.
