Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: ARJM24A1-A12-AA-CW2
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Midcom PN: |
ARJM24A1-A12-AA-CW2 |
Made In China: |
SM-LPJXXXNL |
Application: |
Industry Ethernet Switch |
Shield: |
Shielded Wo/LEDs |
Port: |
2x4 |
Hipot: |
1500V |
Midcom PN: |
ARJM24A1-A12-AA-CW2 |
Made In China: |
SM-LPJXXXNL |
Application: |
Industry Ethernet Switch |
Shield: |
Shielded Wo/LEDs |
Port: |
2x4 |
Hipot: |
1500V |

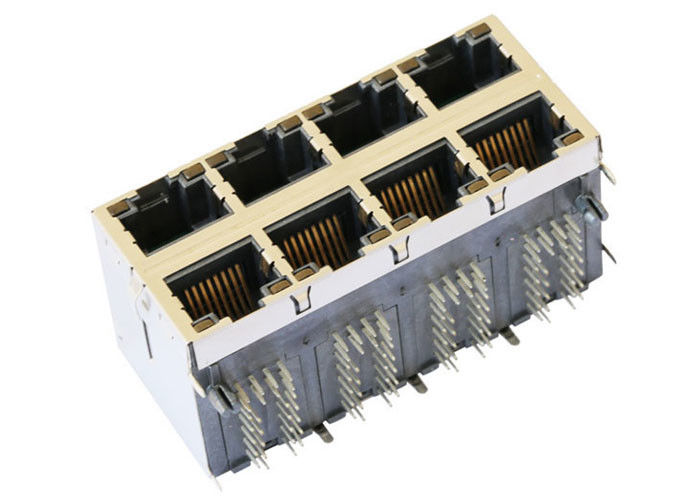

| 2X4 Port 8P8C RJ45 Female Connector with 10/100 Base-T Transformer,Green/Green LED,Tab Up/Down,RoHS | |
| LINK-PP Part Number | LPJxxxxNL |
| Abracon LLC Part Number |
ARJM24A1-A12-AA-CW2
|
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 4 |
| Diodes | NO DIODES |
| LED Option | Green/Green LEDS |
| Latch | TAB UP/TAB DOWN |
| Number of Ports | 2X4 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 1.004 |
| Package Height (mm) | 25.50 |
| Package Length (Inches) | 1.108 |
| Package Length (mm) | 28.14 |
| Package Width (Inches) | 2.326 |
| Package Width (mm) | 59.08 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 10/100 Base-T |
| Temperature | 0°C ~ 70°C |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
1.Turns Ratio:
TX=1:1 RX=1:1
2.Inductance(100KHz,0.1V,8mA DC BIAS):
350uH MIN
3.Transmitter & Receiver filter
Insertion Loss:
1～100MHz:-1.0dB MAX
100～125MHz:-1.2dB MAX
Return Loss:
1～30MHz:-18dB MIN.load 100Ω
30～60MHz:-16dB MIN.load 100Ω
60～80MHz:-12dB MIN.load 100Ω
80～100MHz:-10dB MIN.load 100Ω
4.Crosstalk:
1～100MHz:-30dB MIN
5.Common Mode Rejection:
1～100MHz:-30dB MIN
6.HiPot Test: 1500Vac,60sec
7.Operating Temperature Range: 0℃～70℃.
Applications For Terminal User
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
