Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: ARJM24A1-A12-AB-CW2
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Midcom PN: |
ARJM24A1-A12-AB-CW2 |
Made In China: |
SM-LPJXXXXNL |
Application: |
Gigabit Ethernet Switch |
Shield: |
Shielded Wo/LEDs |
Port: |
2X4 Port |
Hipot: |
1500V |
Midcom PN: |
ARJM24A1-A12-AB-CW2 |
Made In China: |
SM-LPJXXXXNL |
Application: |
Gigabit Ethernet Switch |
Shield: |
Shielded Wo/LEDs |
Port: |
2X4 Port |
Hipot: |
1500V |

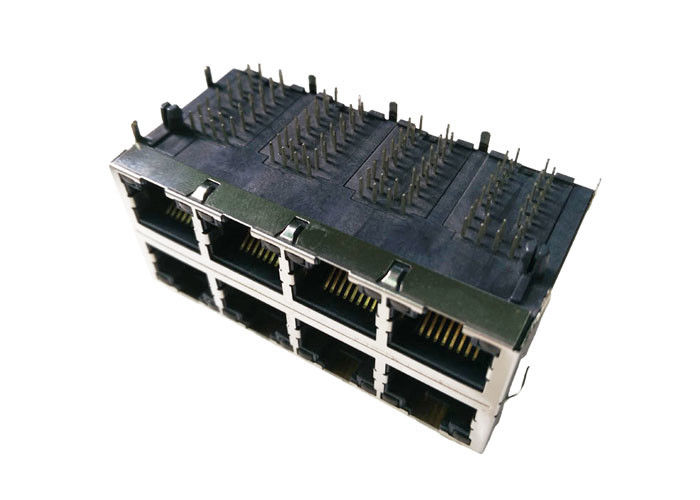

2X4 Port 8P8C RJ45 Female Connector with 10/100 Base-T Transformer,Green/Yellow LED,Tab Up/Down,RoHS | |
LINK-PP Part Number | LPJxxxxNL |
Abracon LLC Part Number |
ARJM24A1-A12-AB-CW2
|
Application-Lan | ETHERNET(NoN PoE) |
AutomDX | YES |
Bst Circuit | YES |
Configuration RX | T,C |
Configuration TX | T,C |
Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
Cores per Port | 4 |
Diodes | NO DIODES |
LED Option | Green/Yellow LEDS |
Latch | TAB UP/TAB DOWN |
Number of Ports | 2X4 |
PCB | FR4 |
PCB Mount Angle | SIDE ENTRY |
PCB Retaining Post | T POST |
Package Height (Inches) | 1.004 |
Package Height (mm) | 25.50 |
Package Length (Inches) | 1.108 |
Package Length (mm) | 28.14 |
Package Width (Inches) | 2.326 |
Package Width (mm) | 59.08 |
Pin Type | THT SOLDER |
RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
Search | YES |
Shield EMI Tabs | WITH |
Speed | 10/100 Base-T |
Temperature | 0°C ~ 70°C |
Turns Ratio RX | 1CT:1CT |
Turns Ratio TX | 1CT:1CT |
Applications For Terminal User
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
Competitive Advantage
18 years production experience,
2600 staff,
100% test
Flexible delivery time
Main Customer
Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......
EMS Application
Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
