2x4 Port Stacked ARJM24A1-A12-BA-EW2 Rj45 Right Angle 10/ 100M Transformer

China 2x4 Port Stacked ARJM24A1-A12-BA-EW2 Rj45 Right Angle 10/ 100M Transformer supplier
2x4 Port Stacked ARJM24A1-A12-BA-EW2 Rj45 Right Angle 10/ 100M Transformer supplier 2x4 Port Stacked ARJM24A1-A12-BA-EW2 Rj45 Right Angle 10/ 100M Transformer supplier

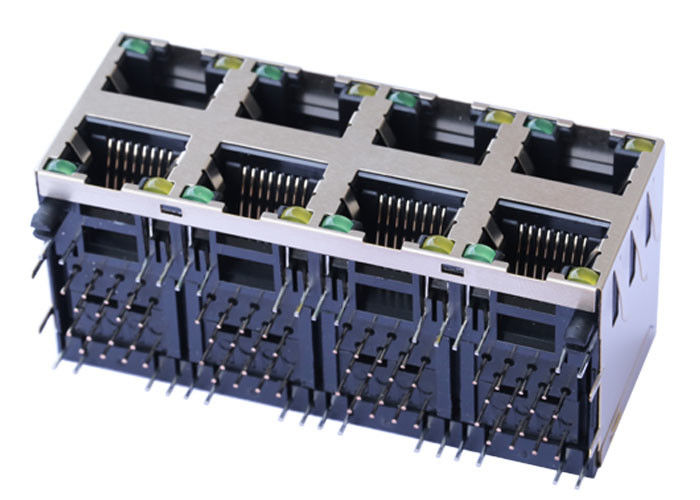

Large Image :  2x4 Port Stacked ARJM24A1-A12-BA-EW2 Rj45 Right Angle 10/ 100M Transformer

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: ARJM24A1-A12-BA-EW2

Payment & Shipping Terms:

Minimum Order Quantity: 1000 / 5000
Price: Supportive
Packaging Details: package:60 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton
Delivery Time: 20-30 work days
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Spec: ARJM24A1-A12-BA-EW2 Analogue PN: LPJXXXXNL
Family: Rj45 With Transformer Inside I/O: 2x4 10/100Base-T
Files: 3D STEP IGS PDF Datasheet Temperature: -40°C ~ 85°C

2x4 Port Stacked ARJM24A1-A12-BA-EW2 Rj45 Right Angle 10/ 100M Transformer



2X4 Port 8P8C RJ45 Female Connector with 10/100 Base-T Transformer, Yellow/Green LED,Tab Up/Down,RoHS
LINK-PP Part Number LPJxxxxNL
Abracon LLC Part Number
ARJM24A1-A12-BA-EW2
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option Yellow/Green LEDS
Latch TAB UP/TAB DOWN
Number of Ports 2X4
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 1.004
Package Height (mm) 25.50
Package Length (Inches) 1.108
Package Length (mm) 28.14
Package Width (Inches) 2.326
Package Width (mm) 59.08
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10/100 Base-T
Temperature -40°C ~ 85°C
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

2x4 Port Stacked ARJM24A1-A12-BA-EW2 Rj45 Right Angle 10/ 100M Transformer



100% Guarantee Qualtiy

•Manufactured Under Strict Controls.

•100% Tested (Not Just Batch Tested)

•LINK-PP Is OEM Of TE (Tyco) For 9 Years

•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

•Quality Guarantee:6 Years



Professional Certification

•ISO 9001:2008

•UL Certification

•Reach Cetitifaction

•RoHS Compliance

•Active Environmental Policy



Competitive Price And Service

•More Competitive Price Than Pulse Tyco Halo And Amphenol

•Delivery Time:2-3 Weeks After Orders

•Free Samples Are Available

•Provide New Design For Customer Requirements

•90% Off Shipping Cost By DHL UPS DEDEX Or TNT



LINK-PP Corporate Policy

•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

Through Continuous Improvements In Quality, Delivery And Service

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services



Other Part Number



ARJM24A1-811-AB-EW2
ARJM24A1-811-BA-EW2
ARJM24A1-811-BB-EW2
ARJM26A1-A12-AA-EW2
ARJM26A1-A12-AB-EW2
ARJM26A1-A12-BA-EW2
ARJM26A1-A12-BB-EW2
ARJM26A1-805-NN-CW2
ARJM26A1-811-NN-EW2
ARJM14A4-811-BA-EW2
ARJM14A4-811-BB-EW2
ARJM24A1-A12-NN-CW2
ARJM24A1-A12-AA-CW2
ARJM24A1-A12-AB-CW2
ARJM24A1-A12-BA-CW2
ARJM24A1-A12-BB-CW2
