ARJM24A1-811-NN-EW2 Stacked RJ45 2x4 MagJacks 5G Base - T Transformer

China ARJM24A1-811-NN-EW2 Stacked RJ45 2x4 MagJacks 5G Base - T Transformer supplier
ARJM24A1-811-NN-EW2 Stacked RJ45 2x4 MagJacks 5G Base - T Transformer supplier ARJM24A1-811-NN-EW2 Stacked RJ45 2x4 MagJacks 5G Base - T Transformer supplier

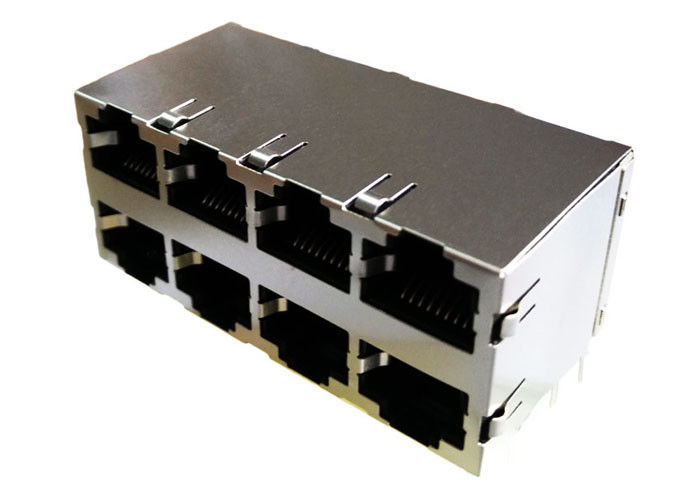

Large Image :  ARJM24A1-811-NN-EW2 Stacked RJ45 2x4 MagJacks 5G Base - T Transformer

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE,ISO9001:2008,Reach
Model Number: ARJM24A1-811-NN-EW2

Payment & Shipping Terms:

Minimum Order Quantity: 500 / 2000
Price: Supportive
Packaging Details: Tray, Tape & Reel
Delivery Time: Stock or 4-5 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Spec: ARJM24A1-811-NN-EW2 Shielded: Copper Alloy
Application: HUB, PC Card, Switch, Router Etc Mounting: Side Entry (Right Angle)
Port: 2X4 Port File: PDF/3D/ISG/Stp/Step/Datasheet

ARJM24A1-811-NN-EW2 Stacked RJ45 2x4 MagJacks 5G Base - T Transformer

Description:

2X4 Port 8P8C RJ45 Female Connector with 5G Base-T Integrated Magnetics, without LED,Tab Up/Down,RoHS
LINK-PP Part Number LPJxxxxNL
Abracon LLC Part Number
ARJM24A1-811-NN-EW2
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option without LEDs
Latch TAB UP/TAB DOWN
Number of Ports 2X4
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 1.004
Package Height (mm) 25.50
Package Length (Inches) 1.108
Package Length (mm) 28.14
Package Width (Inches) 2.326
Package Width (mm) 59.08
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 5G Base-T
Temperature -40°C ~ 85°C
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
