ARJM24A1-805-NN-EW2 Stacked RJ45 2x4 Magnetics Connector Without LEDs

China ARJM24A1-805-NN-EW2 Stacked RJ45 2x4 Magnetics Connector Without LEDs supplier
ARJM24A1-805-NN-EW2 Stacked RJ45 2x4 Magnetics Connector Without LEDs supplier ARJM24A1-805-NN-EW2 Stacked RJ45 2x4 Magnetics Connector Without LEDs supplier

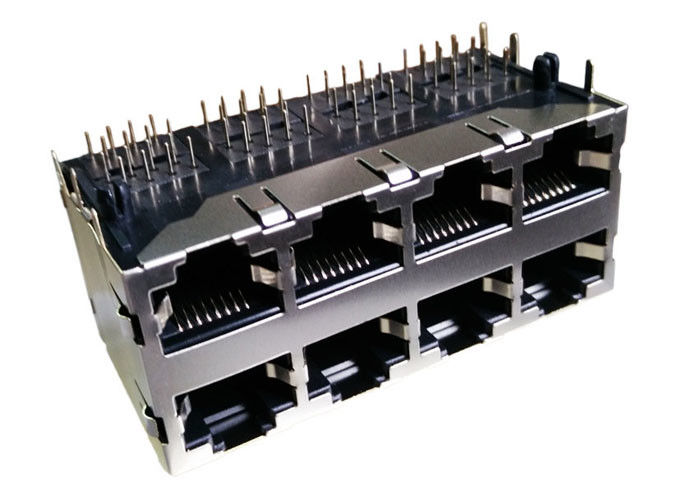

Large Image :  ARJM24A1-805-NN-EW2 Stacked RJ45 2x4 Magnetics Connector Without LEDs

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE,ISO9001:2008
Model Number: ARJM24A1-805-NN-EW2

Payment & Shipping Terms:

Minimum Order Quantity: 500 / 2K, 20K
Price: Supportive
Packaging Details: Tray, Tape & Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 6000K/month
Contact Now
Detailed Product Description
Spec: ARJM24A1-805-NN-EW2 Port: 2x4 Female Rj45
LED: Without Mounting: Side Entry (Right Angle)
Cross Ref: LPJxxxxxNL File: PDF/3D/ISG/Stp/Step/Datasheet

ARJM24A1-805-NN-EW2 Stacked RJ45 2x4 Magnetics Connector Without LEDs
  • Complies with requirement of IEEE 802.3ab standards.
  • RJ-45 connector integrated with transformer/impedance resistor/high voltage capacitor.
  • Size same as RJ-45 connector to save PCB board space.
  • Reduced EMI radiation to improve EMI performance.
  • Compliance with ROHS requirements.
2X4 Port 8P8C RJ45 Female Connector with 2.5G Base-T Integrated Magnetics, without LED,Tab Up/Down,RoHS
LINK-PP Part Number LPJxxxxNL
Abracon LLC Part Number
ARJM24A1-805-NN-EW2
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option without LEDs
Latch TAB UP/TAB DOWN
Number of Ports 2X4
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 1.004
Package Height (mm) 25.50
Package Length (Inches) 1.108
Package Length (mm) 28.14
Package Width (Inches) 2.326
Package Width (mm) 59.08
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 2.5G Base-T
Temperature -40°C ~ 85°C
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
