Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: ARJM24A1-805-AB-CW2
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.5-$3.5
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Part No: |
ARJM24A1-805-AB-CW2 |
Specification: |
LPJXXXXNL |
Ethernet: |
Cat5/5e |
Mounting: |
Thru-hole |
Termination: |
Solder |
Samples: |
Available |
Part No: |
ARJM24A1-805-AB-CW2 |
Specification: |
LPJXXXXNL |
Ethernet: |
Cat5/5e |
Mounting: |
Thru-hole |
Termination: |
Solder |
Samples: |
Available |

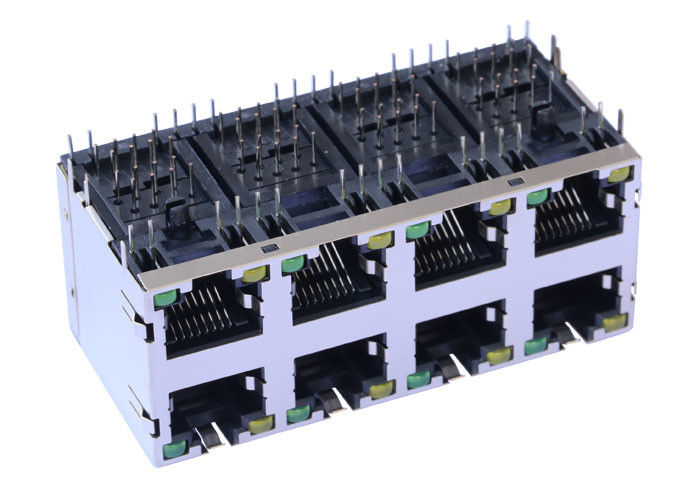

| 2X4 Port 8P8C RJ45 Female Connector with 2.5G Base-T Transformer, Green/Yellow LED,Tab Up/Down,RoHS | |
| LINK-PP Part Number | LPJxxxxNL |
| Abracon LLC Part Number |
ARJM24A1-805-AB-CW2
|
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 8 |
| Diodes | NO DIODES |
| LED Option | Green/Yellow LEDS |
| Latch | TAB UP/TAB DOWN |
| Number of Ports | 2X4 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 1.004 |
| Package Height (mm) | 25.50 |
| Package Length (Inches) | 1.108 |
| Package Length (mm) | 28.14 |
| Package Width (Inches) | 2.326 |
| Package Width (mm) | 59.08 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 2.5G Base-T |
| Temperature | 0°C ~ 70°C |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
