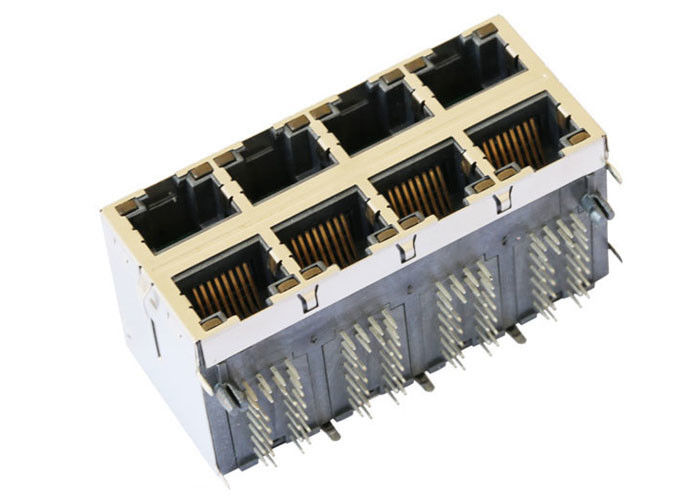

ARJM24A1-805-BA-CW2 2X4 Port 8P8C RJ45 Female Connector with 2.5G Base-T

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: ARJM24A1-805-BA-CW2

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.5-$3.5

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price
Highlight:

rj45 magnetic jack

,

shielded rj45 plugs

Spec:
ARJM24A1-805-BA-CW2
Port:
2x4 Female Rj45
Magnetics:
2.5G Base-T
LED:
YELLOW / GREEN
Mounting:
Side Entry (Right Angle)
Cross Ref:
LPJXXXXXNL
Spec:
ARJM24A1-805-BA-CW2
Port:
2x4 Female Rj45
Magnetics:
2.5G Base-T
LED:
YELLOW / GREEN
Mounting:
Side Entry (Right Angle)
Cross Ref:
LPJXXXXXNL
ARJM24A1-805-BA-CW2 2X4 Port 8P8C RJ45 Female Connector with 2.5G Base-T
ARJM24A1-805-BA-CW2 2X4 Port 8P8C RJ45 Female Connector with 2.5G Base-T

2X4 Port 8P8C RJ45 Female Connector with 2.5G Base-T Transformer, Yellow/Green LED,Tab Up/Down,RoHS
LINK-PP Part Number LPJxxxxNL
Abracon LLC Part Number
ARJM24A1-805-BA-CW2
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option Yellow/Green LEDS
Latch TAB UP/TAB DOWN
Number of Ports 2X4
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 1.004
Package Height (mm) 25.50
Package Length (Inches) 1.108
Package Length (mm) 28.14
Package Width (Inches) 2.326
Package Width (mm) 59.08
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 2.5G Base-T
Temperature 0°C ~ 70°C
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
