Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: ARJM24A1-805-BB-CW2
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.5-$3.5
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Spec: |
ARJM24A1-805-BB-CW2 |
Shielded: |
Copper Alloy |
Application: |
HUB, PC Card, Switch, Router Etc |
Mounting: |
Side Entry (Right Angle) |
Port: |
2X4 Port |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
Spec: |
ARJM24A1-805-BB-CW2 |
Shielded: |
Copper Alloy |
Application: |
HUB, PC Card, Switch, Router Etc |
Mounting: |
Side Entry (Right Angle) |
Port: |
2X4 Port |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |

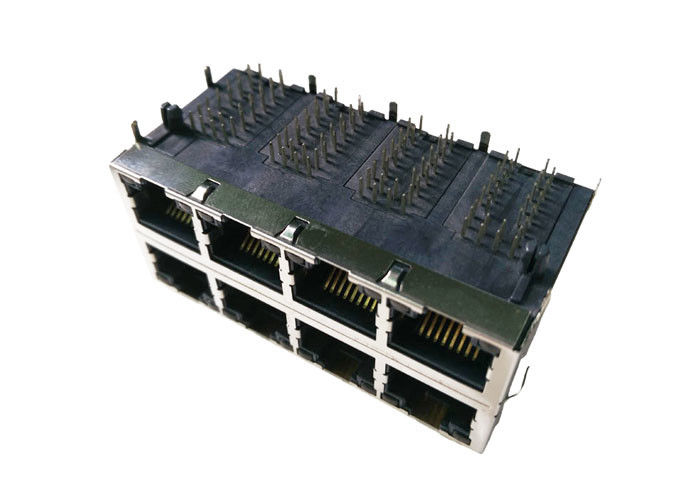

| 2X4 Port 8P8C RJ45 Female Connector with 2.5G Base-T Transformer, Yellow/Yellow LED,Tab Up/Down,RoHS | |
| LINK-PP Part Number | LPJxxxxNL |
| Abracon LLC Part Number |
ARJM24A1-805-BB-CW2
|
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 8 |
| Diodes | NO DIODES |
| LED Option | Yellow/Yellow LEDS |
| Latch | TAB UP/TAB DOWN |
| Number of Ports | 2X4 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 1.004 |
| Package Height (mm) | 25.50 |
| Package Length (Inches) | 1.108 |
| Package Length (mm) | 28.14 |
| Package Width (Inches) | 2.326 |
| Package Width (mm) | 59.08 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 2.5G Base-T |
| Temperature | 0°C ~ 70°C |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•LINK-PP Is OEM Of TE (Tyco) For 9 Years
•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
•Quality Guarantee:6 Years
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:2-3 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
•90% Off Shipping Cost By DHL UPS DEDEX Or TNT
Professional Certification
•ISO 9001:2008
•UL Certification
•Reach Cetitifaction
•RoHS Compliance
•Active Environmental Policy
LINK-PP Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• LINK-PP Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
Other Part Number
| ARJM14A4-811-BB-EW2 |
| ARJM24A1-A12-NN-CW2 |
| ARJM24A1-A12-AA-CW2 |
| ARJM24A1-A12-AB-CW2 |
| ARJM24A1-A12-BA-CW2 |
| ARJM24A1-A12-BB-CW2 |
| ARJM24A1-A12-NN-EW2 |
| ARJM24A1-A12-AA-EW2 |
| ARJM24A1-A12-AB-EW2 |
| ARJM24A1-A12-BA-EW2 |
| ARJM24A1-A12-BB-EW2 |
| ARJM24A1-805-NN-CW2 |
| ARJM24A1-811-NN-EW2 |
| ARJM24A1-805-NN-EW2 |
| ARJM24A1-805-AA-CW2 |
