ARJM26A1-A12-NN-CW2 Stacked 2x6 Port Magjack 12Port 10 / 100 Base - T

China ARJM26A1-A12-NN-CW2 Stacked 2x6 Port Magjack 12Port 10 / 100 Base - T supplier
ARJM26A1-A12-NN-CW2 Stacked 2x6 Port Magjack 12Port 10 / 100 Base - T supplier ARJM26A1-A12-NN-CW2 Stacked 2x6 Port Magjack 12Port 10 / 100 Base - T supplier

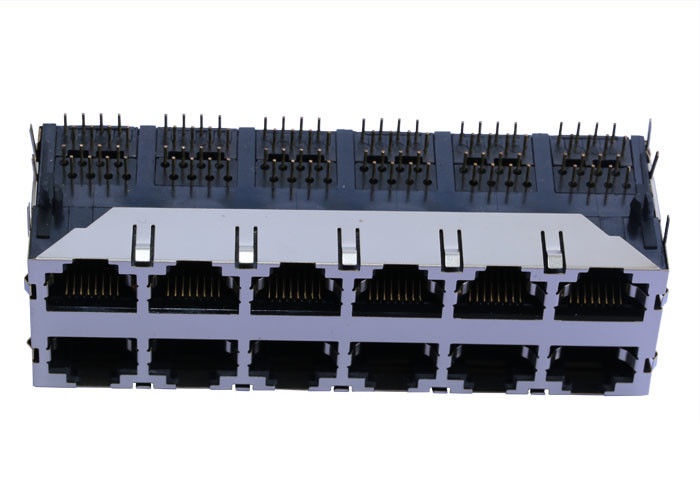

Large Image :  ARJM26A1-A12-NN-CW2 Stacked 2x6 Port Magjack 12Port 10 / 100 Base - T

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: ARJM26A1-A12-NN-CW2

Payment & Shipping Terms:

Minimum Order Quantity: 200 / 1000 / 5000
Price: Supportive & 60% Discounted
Packaging Details: Tray & Cartons
Delivery Time: Stock or 4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Spec: ARJM26A1-A12-NN-CW2 Family: 12 Port Magnetic Rj45
Applications: 10/100 Base-T Mounting: Through Hole
Files: PDF / IGS / Datasheet Standard: IEEE802.3af/ Ieee802.3at

ARJM26A1-A12-NN-CW2 Stacked 2x6 Port Magjack 12Port 10 / 100 Base - T

2X6 Port 8P8C RJ45 Female Connector with 10/100 Base-T Transformer , without LED,Tab Up/Down,RoHS
LINK-PP Part Number LPJGxxxxNL
Abracon LLC Part Number
ARJM26A1-A12-NN-CW2
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option without LEDS
Latch TAB UP/TAB DOWN
Number of Ports 2X6
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 1.004
Package Height (mm) 25.50
Package Length (Inches) 1.108
Package Length (mm) 28.14
Package Width (Inches) 3.426
Package Width (mm) 87.02
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10/100 Base-T
Temperature 0°C ~ 70°C
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Applications For Terminal User



Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...

Competitive Advantage

20 years production experience,
2600 staff,
100% test
Flexible delivery time

Main Customer

Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......

EMS Application

Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly



FAQ

Q:Are you a factory or a trading company?

A:We are factory with 6 production line assembled workshop and a Stamping Workshop,about 200 employees.

Q: Can I get some samples?

A: Yes, sample order is available, some samples are free. and it will be freight collect payment.

Q : How long is your lead time?

A: Normally, our lead time is 10-25 days according to different products.

Q: What's your payment term?

A: We accept TT/LC/DP/DA/Paypal/Western Union/MoneyGram
