ARJM14A4-811-BB-CW2 1x4 Port Rj45 Connector With 5G Base-TX Magnetics

China ARJM14A4-811-BB-CW2 1x4 Port Rj45 Connector With 5G Base-TX Magnetics supplier
ARJM14A4-811-BB-CW2 1x4 Port Rj45 Connector With 5G Base-TX Magnetics supplier ARJM14A4-811-BB-CW2 1x4 Port Rj45 Connector With 5G Base-TX Magnetics supplier

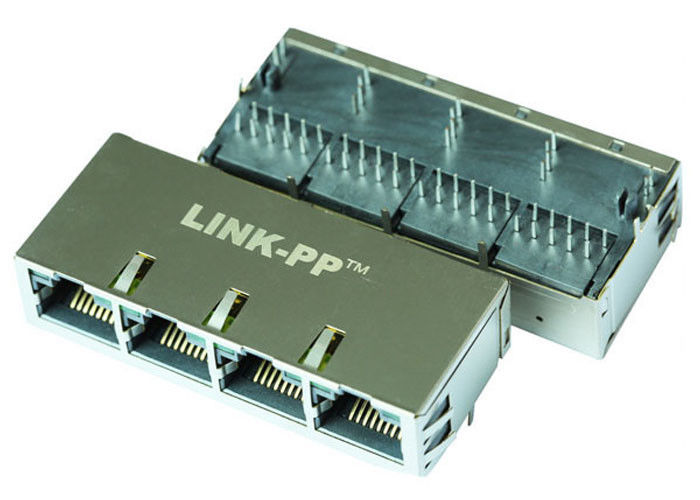

Large Image :  ARJM14A4-811-BB-CW2 1x4 Port Rj45 Connector With 5G Base-TX Magnetics

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH163
Model Number: ARJM14A4-811-BB-CW2

Payment & Shipping Terms:

Minimum Order Quantity: 250 PCS
Price: Supportive & Competitive
Packaging Details: Tray & Carton&Reel
Delivery Time: Stock or 4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Midcom PN: ARJM14A4-811-BB-CW2 Made In China: LPJXXXXNL
Application: 5G Base-TX Applictation Mounting: Shielded W/LEDs
Port: Dual File: PDF/3D/ISG/Stp/Step/Datasheet

ARJM14A4-811-BB-CW2 1x4 Port Rj45 Connector With 5G Base-TX Magnetics

Shielded 1x4 Port RJ45 Magjack Connector with 5G Base-T Integrated Magnetics , Yellow/Yellow LED,Tab UP,RoHS
LINK-PP Part Number LPJGxxxxNL
Abracon LLC Part Number ARJM14A4-811-BB-CW2
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option Yellow/Yellow LEDs
Latch TAB UP
Number of Ports 1X4
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.535
Package Height (mm) 13.60
Package Length (Inches) 0.839
Package Length (mm) 21.30
Package Width (Inches) 2.327
Package Width (mm) 59.10
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 5G Base-T
Temperature 0°C ~ 70°C
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
