Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: ARJM22A1-811-BA-EW2
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.5-$3.5
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Specifications: |
ARJM22A1-811-BA-EW2 |
Port: |
2x1 Single |
Samples: |
Available 1-3 Pcs |
LED: |
YELLOW / GREEN |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Speed: |
1000 Base-t |
Specifications: |
ARJM22A1-811-BA-EW2 |
Port: |
2x1 Single |
Samples: |
Available 1-3 Pcs |
LED: |
YELLOW / GREEN |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Speed: |
1000 Base-t |

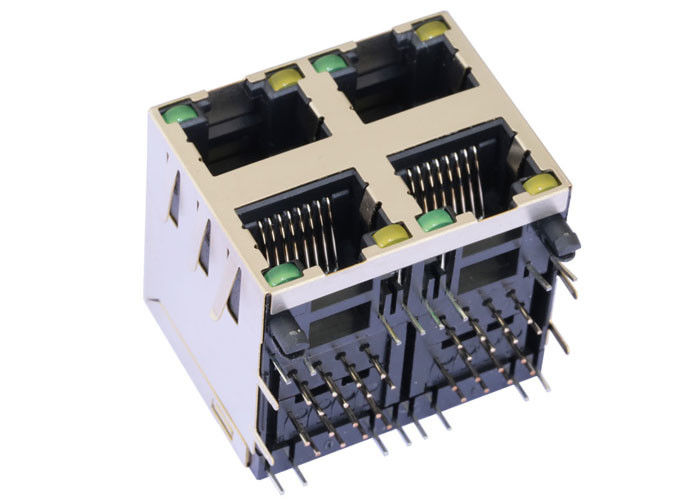

| 2X2 RJ45 Connector with 5G Base-T Integrated Magnetics , Yellow/Green LED,Tab Up/Tab Down,RoHS | |
| LINK-PP Part Number | LPJxxxxNL |
| Abracon LLC Part Number | ARJM22A1-811-BA-EW2 |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 8 |
| Diodes | NO DIODES |
| LED Option | Yellow/Green |
| Latch | TAB UP/TAB DOWN |
| Number of Ports | 2X2 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 1.004 |
| Package Height (mm) | 25.50 |
| Package Length (Inches) | 1.108 |
| Package Length (mm) | 28.14 |
| Package Width (Inches) | 1.226 |
| Package Width (mm) | 31.14 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 5G Base-T |
| Temperature | -40°C ~ 85°C |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Applications:
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
•ISO 9001:2008
•UL Certification
•Reach Cetitifaction
•RoHS Compliance
•Active Environmental Policy
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•LINK-PP Is OEM Of TE (Tyco) For 9 Years
•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
•Quality Guarantee:6 Years
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:2-3 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
•90% Off Shipping Cost By DHL UPS DEDEX Or TNT
LINK-PP Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• LINK-PP Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
FAQ
Q:Are you a factory or a trading company?
A:We are factory with 6 production line assembled workshop and a Stamping Workshop,about 200 employees.
Q: Can I get some samples?
A: Yes, sample order is available, some samples are free. and it will be freight collect payment.
Q : How long is your lead time?
A: Normally, our lead time is 10-25 days according to different products.
Q: What's your payment term?
A: We accept TT/LC/DP/DA/Paypal/Western Union/MoneyGram
Q: Why choose our company?
A: 1. Professional manufacturer since 1997, provide various kinds of connectors and LAN Transformer
2. No MOQ demand.
3. Good quality, competitive price with best service.
4. Available for ODM/OEM order.
