ARJM22A1-811-NN-EW2 Stacked RJ45 8p8c Ethernet 2x2 Ports Shielded 5G

China ARJM22A1-811-NN-EW2 Stacked RJ45 8p8c Ethernet 2x2 Ports Shielded 5G supplier
ARJM22A1-811-NN-EW2 Stacked RJ45 8p8c Ethernet 2x2 Ports Shielded 5G supplier ARJM22A1-811-NN-EW2 Stacked RJ45 8p8c Ethernet 2x2 Ports Shielded 5G supplier

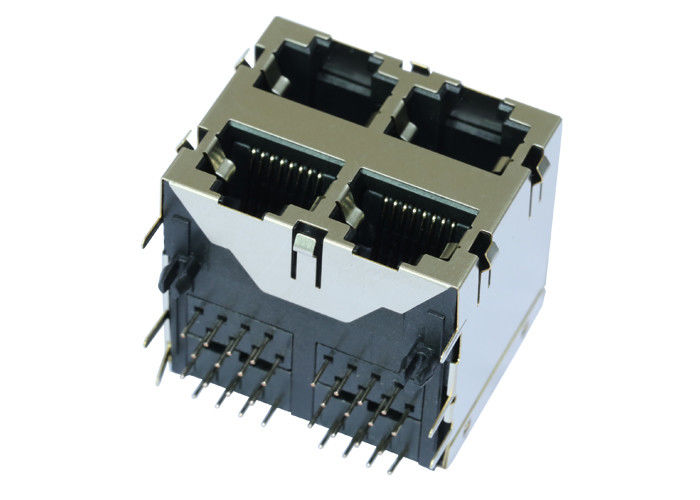

Large Image :  ARJM22A1-811-NN-EW2 Stacked RJ45 8p8c Ethernet 2x2 Ports Shielded 5G

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE,ISO9001:2008
Model Number: ARJM22A1-811-NN-EW2

Payment & Shipping Terms:

Minimum Order Quantity: 500 / 5000
Price: Negotiable
Packaging Details: Tray, Tape & Reel
Delivery Time: 4-5 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Spec TE: ARJM22A1-811-NN-EW2 Alternate: LPJXXXXNL
Category: Stacked RJ45 2x2 Files: PDF / Datasheet / 3D / IGS / Step /Stp
Application: HUB, PC Card, Switch, Router Etc

ARJM22A1-811-NN-EW2 Stacked RJ45 8p8c Ethernet 2x2 Ports Shielded 5G



2X2 Ethernet RJ45 Connector with 5G Base-T Integrated Magnetics ,Without LED,Tab Up/Tab Down,RoHS
LINK-PP Part Number LPJxxxxNL
Abracon LLC Part Number ARJM22A1-811-NN-EW2
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option WITHOUT LEDS
Latch TAB UP/TAB DOWN
Number of Ports 2X2
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 1.004
Package Height (mm) 25.50
Package Length (Inches) 1.108
Package Length (mm) 28.14
Package Width (Inches) 1.226
Package Width (mm) 31.14
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 5G Base-T
Temperature -40°C ~ 85°C
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT



Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...


Competitive Advantage:
16 years production experience,
2600 staff,
100% test
Flexible delivery time



EMS Application

Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly



FAQ

Q:Are you a factory or a trading company?

A:We are factory with 6 production line assembled workshop and a Stamping Workshop,about 200 employees.

Q: Can I get some samples?

A: Yes, sample order is available, some samples are free. and it will be freight collect payment.

Q : How long is your lead time?

A: Normally, our lead time is 10-25 days according to different products.

Q: What's your payment term?

A: We accept TT/LC/DP/DA/Paypal/Western Union/MoneyGram



Other Part Number

ARJM14A1-811-NN-EW2
ARJM14A2-811-NN-EW2
ARJM14A3-811-NN-EW2
ARJM14A4-811-NN-EW2
ARJM14A1-811-NN-CW2
ARJM14A2-811-NN-CW2
ARJM14A3-811-NN-CW2
ARJM14A4-811-NN-CW2
ARJM22A1-811-NN-CW2
ARJM14A1-811-AA-CW2
ARJM14A1-811-AB-CW2
ARJM14A1-811-BA-CW2
ARJM14A1-811-BB-CW2
ARJM14A2-811-AA-CW2
ARJM14A2-811-AB-CW2
