Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: ARJM14A1-811-NN-CW2
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.5-$3.5
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Product Name: |
ARJM14A1-811-NN-CW2 |
RJ45 Connector: |
1 X 4 Port Muti-port,Custom |
Base: |
5G Magnetic |
Latch: |
Tab Down |
Plating: |
Gold Or Tin Plate,OEM |
Product Name: |
ARJM14A1-811-NN-CW2 |
RJ45 Connector: |
1 X 4 Port Muti-port,Custom |
Base: |
5G Magnetic |
Latch: |
Tab Down |
Plating: |
Gold Or Tin Plate,OEM |
Description:

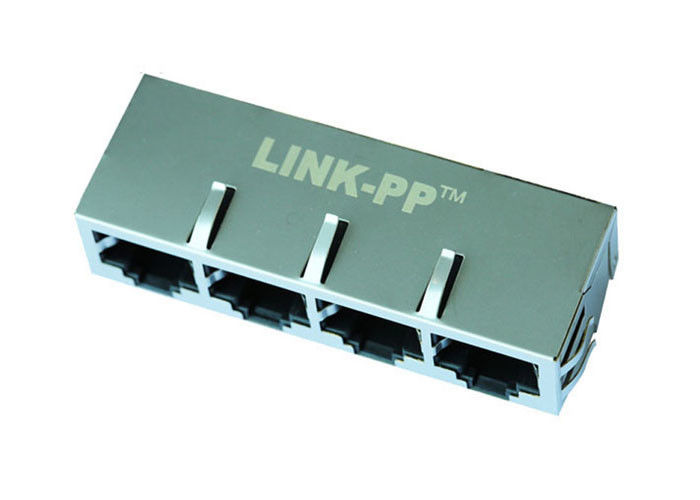

| Shielded 1x4 Port RJ45 Magjack Connector with 5G Base-T Integrated Magnetics,without LED,Tab Down,RoHS | |
| LINK-PP Part Number | LPJGxxxxNL |
| Abracon LLC Part Number | ARJM14A1-811-NN-CW2 |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 8 |
| Diodes | NO DIODES |
| LED Option | without LEDs |
| Latch | TAB Down |
| Number of Ports | 1X4 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.535 |
| Package Height (mm) | 13.60 |
| Package Length (Inches) | 0.839 |
| Package Length (mm) | 21.30 |
| Package Width (Inches) | 2.327 |
| Package Width (mm) | 59.10 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 5G Base-T |
| Temperature | 0°C ~ 70°C |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
Competitive Advantage:
16 years production experience,
2600 staff,
100% test
Flexible delivery time
FAQ
Q:Are you a factory or a trading company?
A:We are factory with 6 production line assembled workshop and a Stamping Workshop,about 200 employees.
Q: Can I get some samples?
A: Yes, sample order is available, some samples are free. and it will be freight collect payment.
Q : How long is your lead time?
A: Normally, our lead time is 10-25 days according to different products.
Q: What's your payment term?
A: We accept TT/LC/DP/DA/Paypal/Western Union/MoneyGram
Q: Why choose our company?
A: 1. Professional manufacturer since 1997, provide various kinds of connectors and LAN Transformer
2. No MOQ demand.
3. Good quality, competitive price with best service.
4. Available for ODM/OEM order.
Other Part Number
| ARJM14A1-811-BA-CW2 |
| ARJM14A1-811-BB-CW2 |
| ARJM14A2-811-AA-CW2 |
| ARJM14A2-811-AB-CW2 |
| ARJM14A2-811-BA-CW2 |
| ARJM14A2-811-BB-CW2 |
| ARJM14A3-811-AA-CW2 |
| ARJM14A3-811-AB-CW2 |
| ARJM14A3-811-BA-CW2 |
| ARJM14A3-811-BB-CW2 |
| ARJM14A4-811-AA-CW2 |
| ARJM14A4-805-BA-CW2 |
| ARJM14A4-805-BB-CW2 |
