Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: ARJM14A3-811-AA-CW2
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.5-$3.5
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
PN: |
ARJM14A3-811-AA-CW2 |
Pin To Pin: |
LPJXXXXXNL |
Gender: |
Female,Receptacle |
Plating: |
Gold Or Tin Plate,OEM |
RJ45 Connector: |
1 X 4 Port Muti-port,Custom |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |
PN: |
ARJM14A3-811-AA-CW2 |
Pin To Pin: |
LPJXXXXXNL |
Gender: |
Female,Receptacle |
Plating: |
Gold Or Tin Plate,OEM |
RJ45 Connector: |
1 X 4 Port Muti-port,Custom |
File: |
PDF/3D/ISG/Stp/Step/Datasheet |

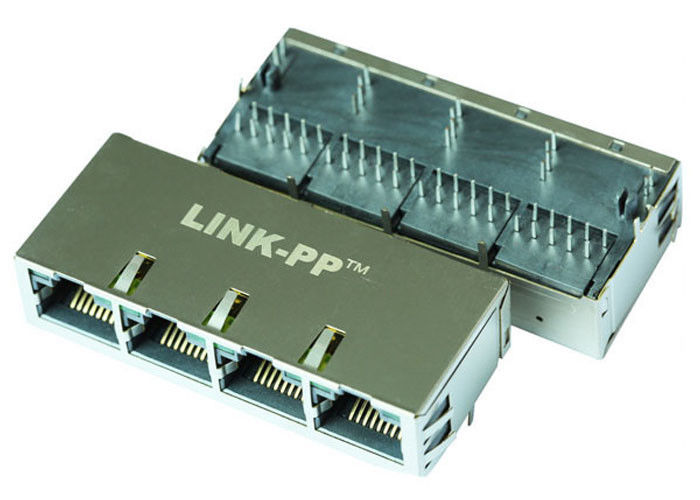

| Shielded 1x4 Port RJ45 Magjack Connector with 5G Base-T Integrated Magnetics , Green/Green LED,Tab UP,RoHS | |
| LINK-PP Part Number | LPJGxxxxNL |
| Abracon LLC Part Number | ARJM14A3-811-AA-CW2 |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 8 |
| Diodes | NO DIODES |
| LED Option | Green/Green LEDs |
| Latch | TAB UP |
| Number of Ports | 1X4 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.535 |
| Package Height (mm) | 13.60 |
| Package Length (Inches) | 0.839 |
| Package Length (mm) | 21.30 |
| Package Width (Inches) | 2.327 |
| Package Width (mm) | 59.10 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 5G Base-T |
| Temperature | 0°C ~ 70°C |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•LINK-PP Is OEM Of TE (Tyco) For 9 Years
•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
•Quality Guarantee:6 Years
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:2-3 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
•90% Off Shipping Cost By DHL UPS DEDEX Or TNT
LINK-PP Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• LINK-PP Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
Professional Certification
•ISO 9001:2008
•UL Certification
•Reach Cetitifaction
•RoHS Compliance
•Active Environmental Policy
Other Part Number
| ARJM14A2-805-BB-EW2 |
| ARJM14A3-805-AA-EW2 |
| ARJM14A3-805-AB-EW2 |
| ARJM14A3-805-BA-EW2 |
| ARJM14A3-805-BB-EW2 |
| ARJM14A4-805-AA-EW2 |
| ARJM14A4-805-AB-EW2 |
| ARJM14A4-805-BA-EW2 |
| ARJM14A4-805-BB-EW2 |
| ARJM22A1-805-AA-CW2 |
| ARJM22A1-805-AB-CW2 |
| ARJM22A1-805-BA-CW2 |
