Home > products > Magnetic RJ45 Jack > ARJM14A4-811-AA-CW2 Ethernet Rj45 Connectors 1 X 4 Port With 5G Base - T

ARJM14A4-811-AA-CW2 Ethernet Rj45 Connectors 1 X 4 Port With 5G Base - T

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: ARJM14A4-811-AA-CW2

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.5-$3.5

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price
Highlight:

stacked rj45 connectors

,

shielded rj45 plugs

Spec.:
ARJM14A4-811-AA-CW2
Analogue:
LPJXXXXNL
Connector Type:
RJ45 Female
Applications:
Cat5,5E X2
Mounting:
Through Hole PCB
Orientation:
Side Entry
Termination:
Solder-Wave
File:
PDF/3D/ISG/Stp/Step/Datasheet
Spec.:
ARJM14A4-811-AA-CW2
Analogue:
LPJXXXXNL
Connector Type:
RJ45 Female
Applications:
Cat5,5E X2
Mounting:
Through Hole PCB
Orientation:
Side Entry
Termination:
Solder-Wave
File:
PDF/3D/ISG/Stp/Step/Datasheet
ARJM14A4-811-AA-CW2 Ethernet Rj45 Connectors 1 X 4 Port With 5G Base - T
ARJM14A4-811-AA-CW2 Ethernet Rj45 Connectors 1 X 4 Port With 5G Base - T

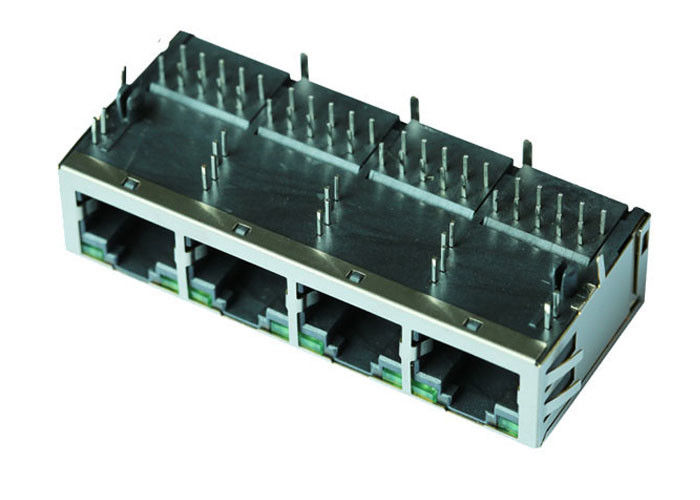

Shielded 1x4 Port RJ45 Magjack Connector with 5G Base-T Integrated Magnetics , Green/Green LED,Tab UP,RoHS
LINK-PP Part Number LPJGxxxxNL
Abracon LLC Part Number ARJM14A4-811-AA-CW2
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option Green/Green LEDs
Latch TAB UP
Number of Ports 1X4
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.535
Package Height (mm) 13.60
Package Length (Inches) 0.839
Package Length (mm) 21.30
Package Width (Inches) 2.327
Package Width (mm) 59.10
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 5G Base-T
Temperature 0°C ~ 70°C
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
